Extraction Hoods
Nozzle plates in industrial-grade welded sheet steel construction with peripheral edging and integrated extraction nozzles with flange connection. The hood design should be adapted to local conditions (application, cross-flows, smoke generation, etc.).
Advantages
- Flat, space-saving steel construction
- Low weight
- Low investment and operating costs
- Efficient and powerful through nozzle technology
Capture Elements
WALTER offers various capture elements. In practice, there are often extraction points for which no capture element has yet been designed. We have the optimal capture solution for your requirements.
We design custom hoods in stationary or swivel versions, according to your requirements.
Application Examples

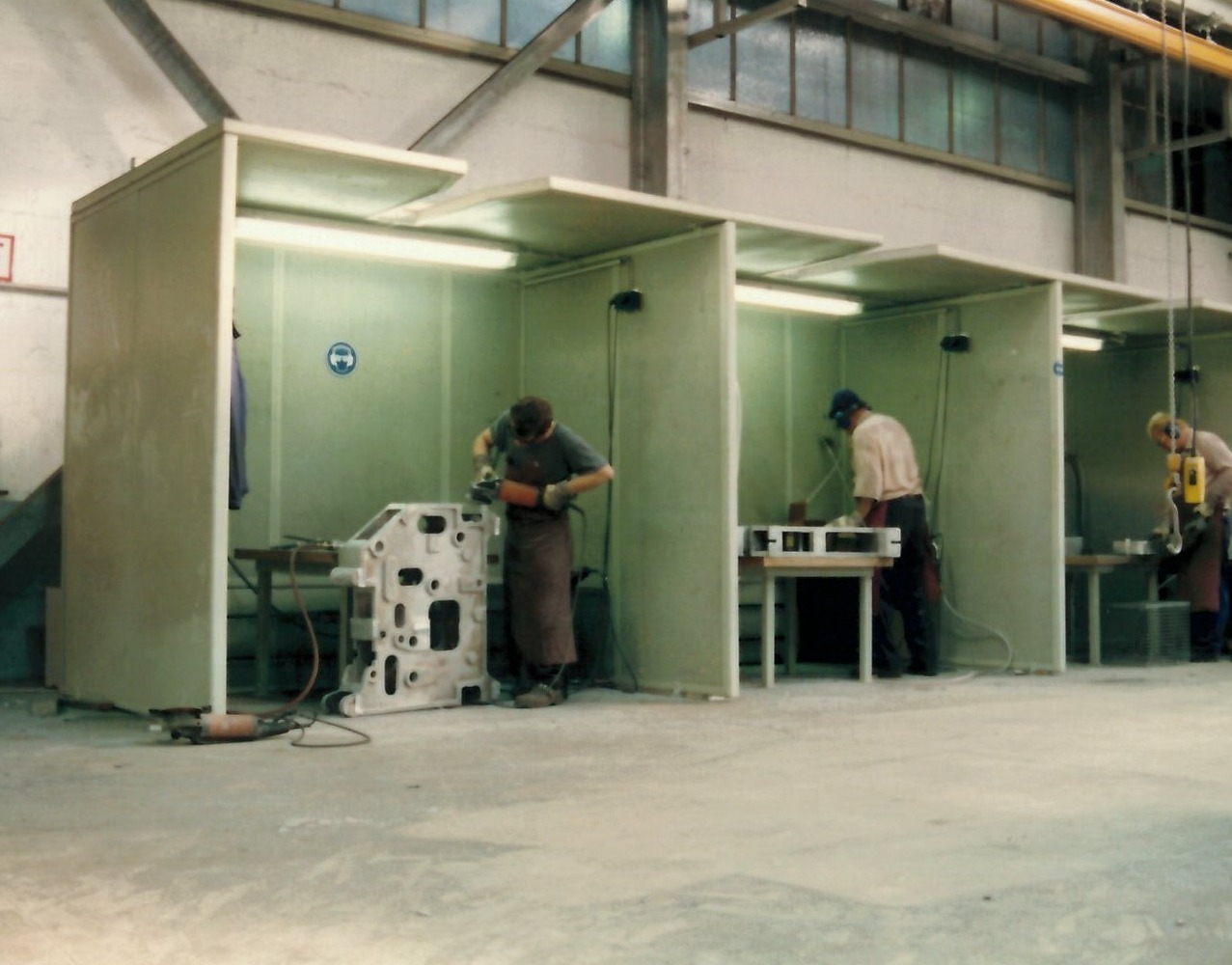

Foundry Dedusting
Variants
The extraction hoods are available in various sizes:
- 900 x 900mm
- 1.700 x 900mm

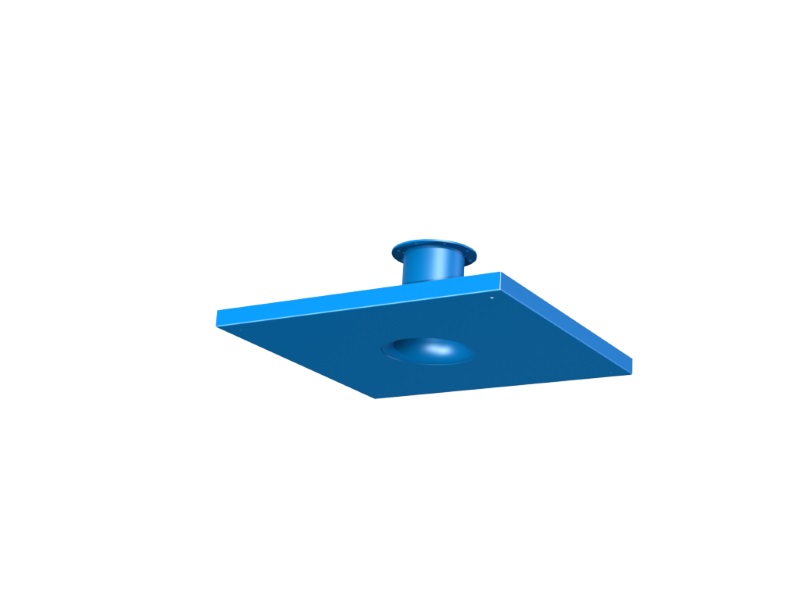

900 x 900mm
1 nozzle
1.700 x 900mm
2 nozzles
Technical Data
| Extraction Hoods | 900 x 900mm | 1.700 x 900mm |
|---|---|---|
| Nozzles (quantity) | 1 | 2 |
| Connection diameter | 200mm | 280mm |
| Length | 900mm | 1.700mm |
| Width | 900mm | 900mm |
| Sheet thickness | 2mm | 2mm |
| Weight | 19kg | 58kg |
