Chip Extraction System for Aluminum Chips
The SAE series chip extraction systems were developed by WALTER specifically for aluminum tube and can production in non-Ex areas. The SAE series is available in various performance levels and housing sizes. This allows them to be adapted to different requirements. The robust chip extraction systems enable trouble-free 24-hour operation at constant air throughput.
Applications
- Tube manufacturing
- Chip-producing work processes
- Work processes with larger and dry chips that do not contain fire and explosion-hazardous substances
Operating Principle

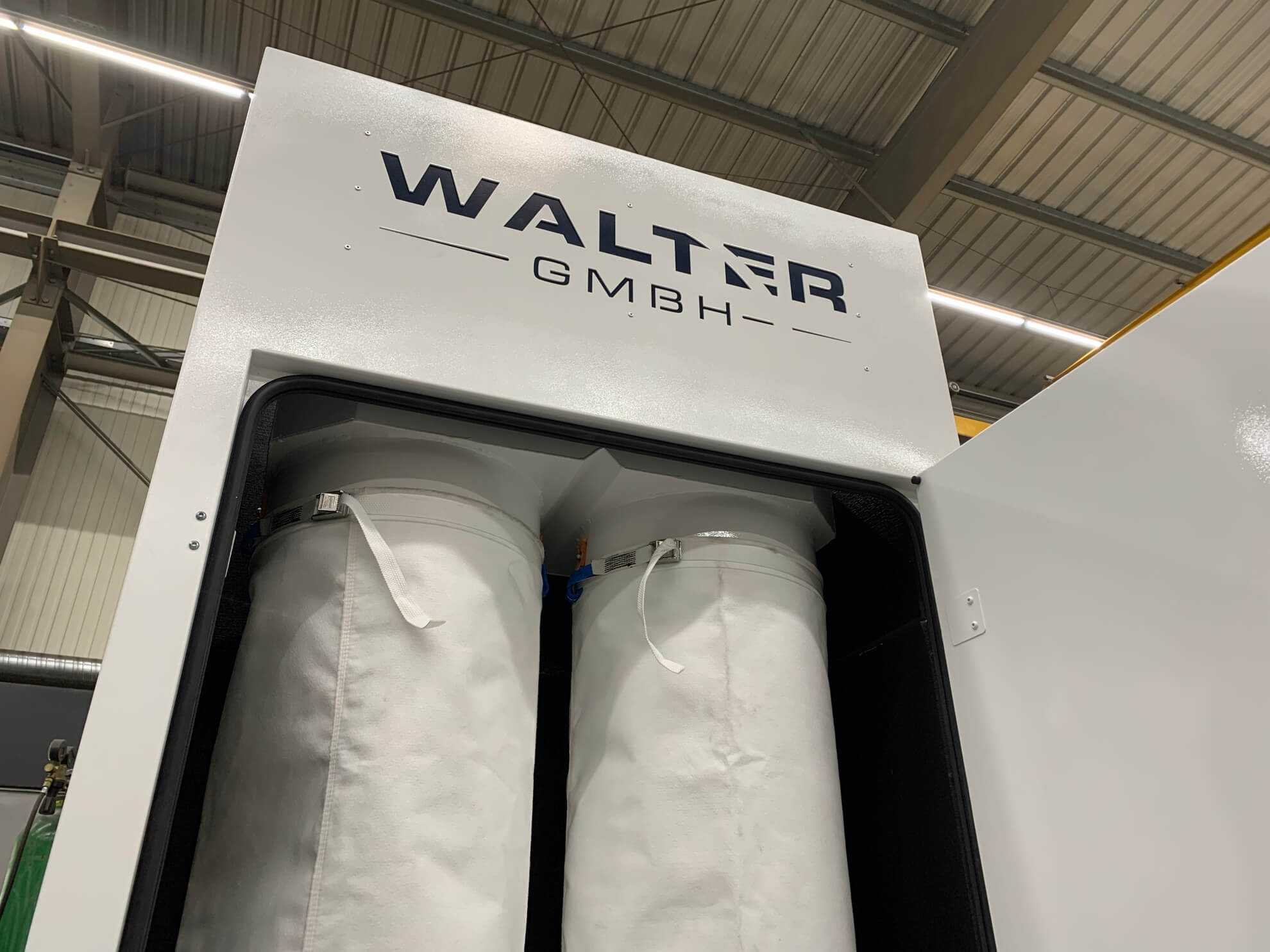

The WALTER SAE series consists of a 2-stage filter system. The first filter stage consists of a separator. Here the chips and coarse particles are separated and fall into a chip cart. The chip cart is emptied easily via a sliding or flap mechanism (depending on version). The second filter stage consists of filter bags or filter cartridges (depending on version). The exhaust air is then returned draft-free upward into the room. Noise development is reduced by means of a sound hood with built-in sound-absorbing baffles.
The chip extraction systems are available in various performance levels:
- SAE-2815.2
- SAE-3421.2
SAE-2815.2

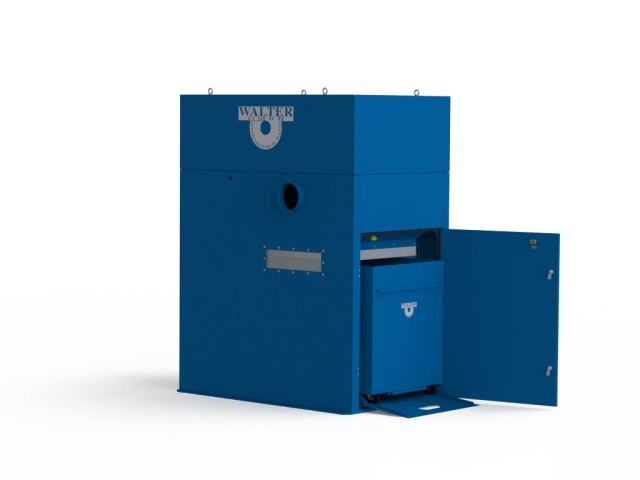

SAE-2815.2 Volume flow 2,800 m³/h
SAE-3421.2
SAE-3421.2 Volume flow 3,400 m³/h

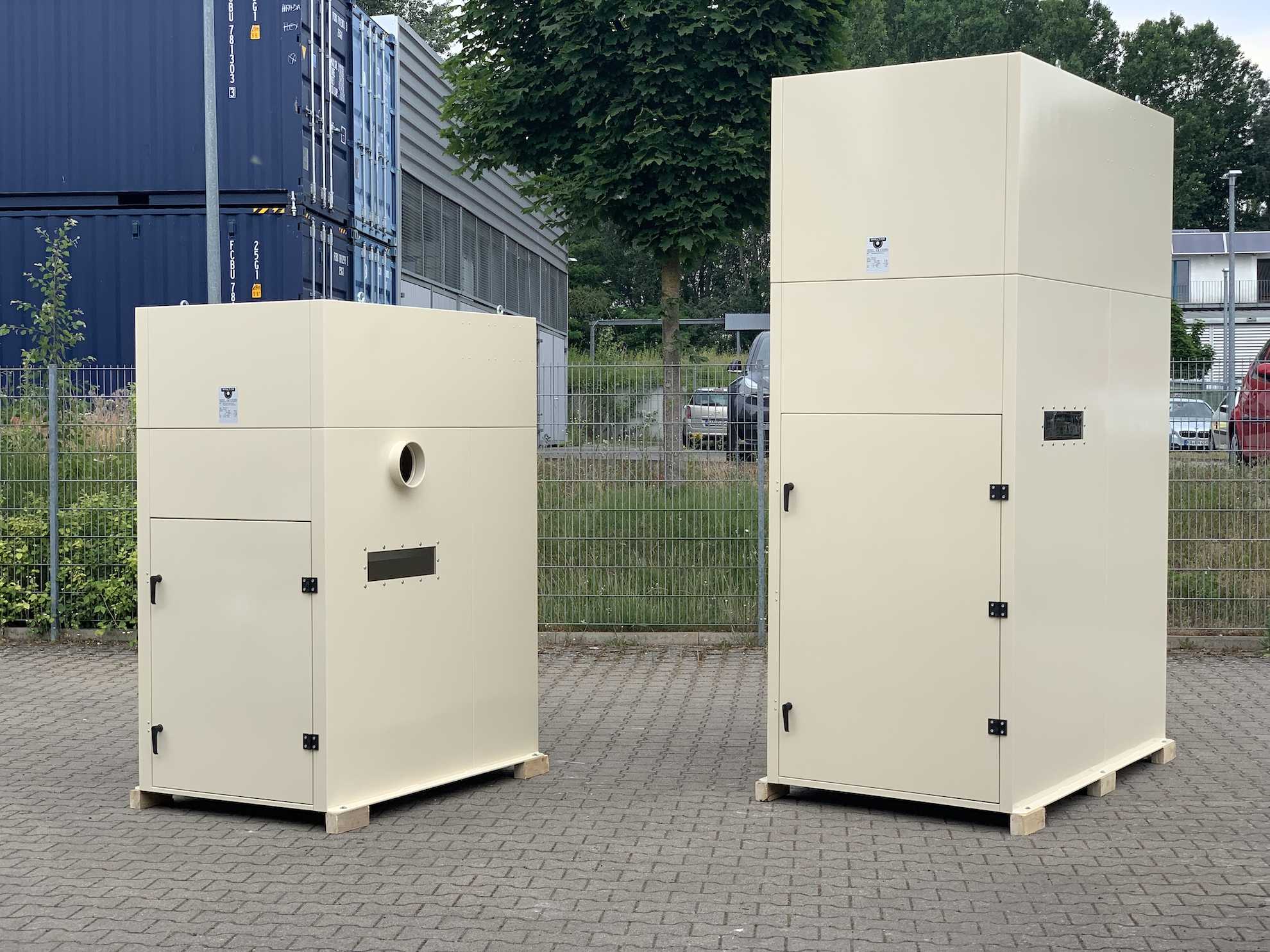

SAE-2815.2 / SAE-3421.2
Chip extraction systems
Alu-Chip Extraction Systems
according to customer requirements

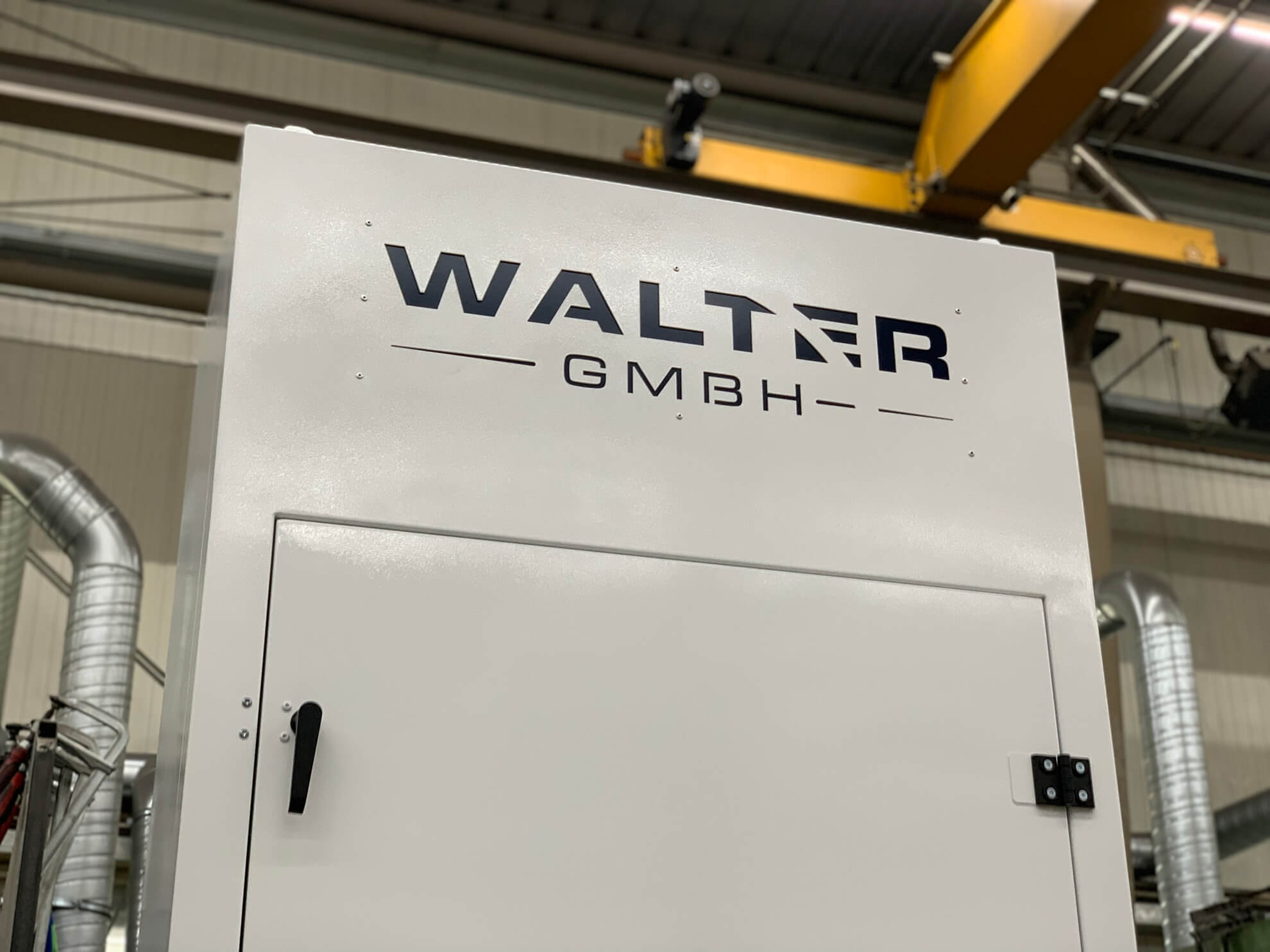

Alu-Chip Extraction Systems
according to customer requirements

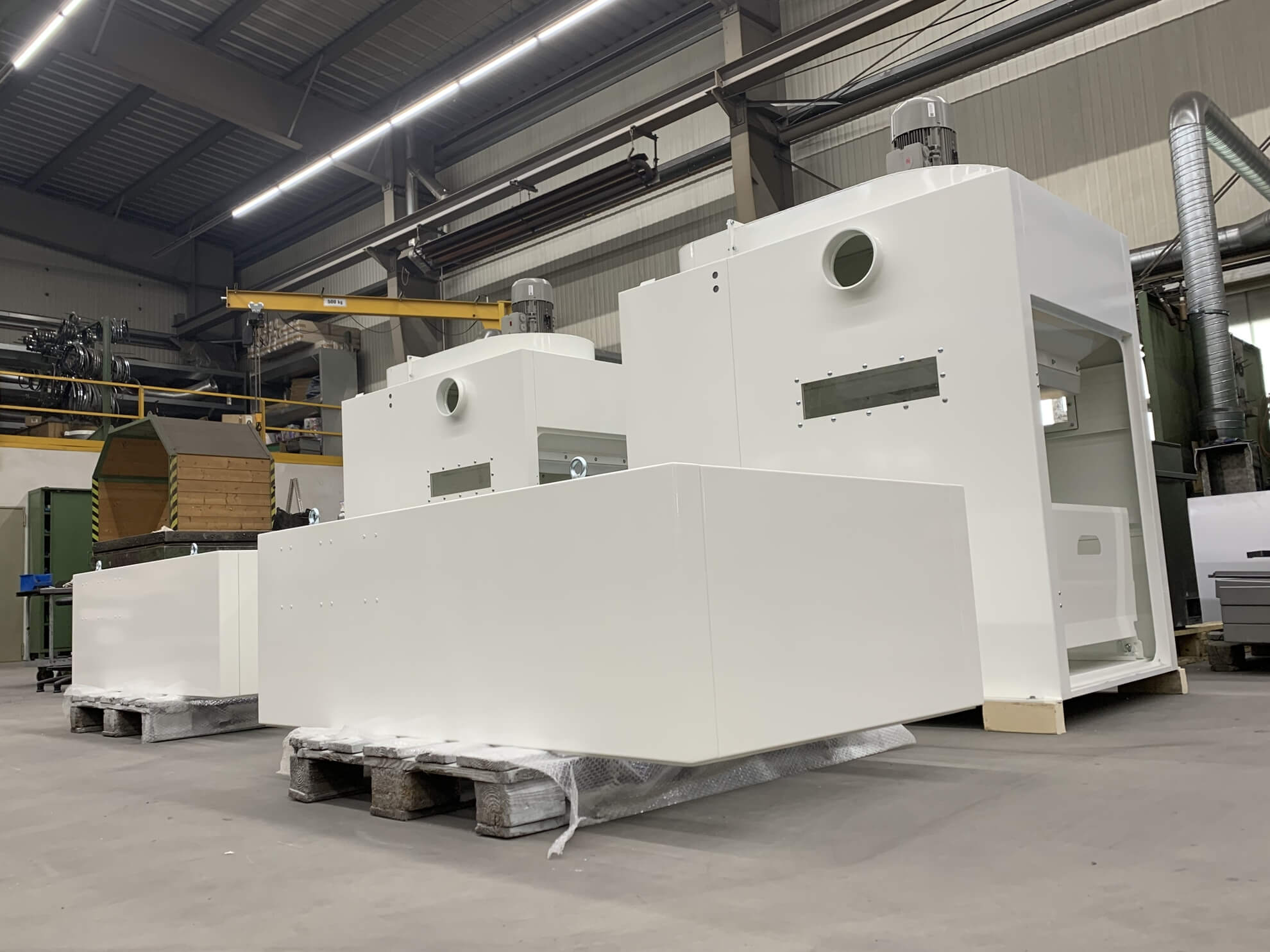

Alu-Chip Extraction Systems
in production
Technical Data
| Chip extraction system | SAE-2815.2 | SAE-3421.2 |
|---|---|---|
| Volume flow | 2.800 m³/h | 3.400 m³/h |
| Pressure | 3.050 Pa | 4.500 Pa |
| Drive power | 4,0 kW | 7,5 kW |
| Voltage | 400/460 V | 400/460 V |
| Frequency | 50/60 Hz | 50/60 Hz |
| Connection diameter | 180 mm | 200 mm |
| Length | 1.530 mm | 2.000 mm |
| Width | 1.000 mm | 1.100 mm |
| Height | 2.000 mm | 2.960 mm |
| Chip cart volume | 430 Ltr. | 600 Ltr. |
| Weight | 520 kg | 900 kg |
