Pipes DIN 24151 (EN 1506) / Ducts DIN 24192 (EN 1505)
We manufacture pipes, pipe fittings and ventilation ducts for air handling systems.
We are happy to manufacture special sizes according to your specifications.
Applications
Welded pipelines are used in air handling systems (process air) for conveying air (including dust-laden) without the addition of aggressive vapors or wear-promoting solids. They are used in the areas of ventilation, extraction, dust removal, exhaust air cleaning or flue gas cleaning.
We are happy to assist with the planning/design of pipe systems and material selection. The material grade to be used, pipe length, wall thickness, requirements for welding technology/surface treatment etc. are generally based on the respective purpose of use and are to be agreed between buyer and supplier on an order-by-order basis.
You can order a selection from our pipe range directly in our shop.
Open ShopPipe Fittings
We manufacture the following pipe fittings:

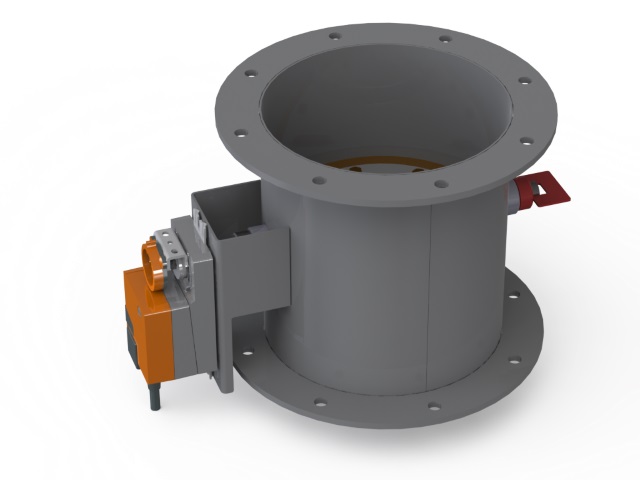

Damper
electric

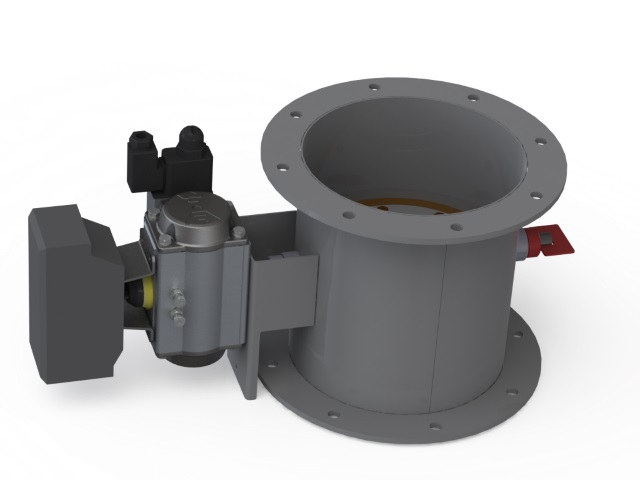

Damper
electro-pneumatic

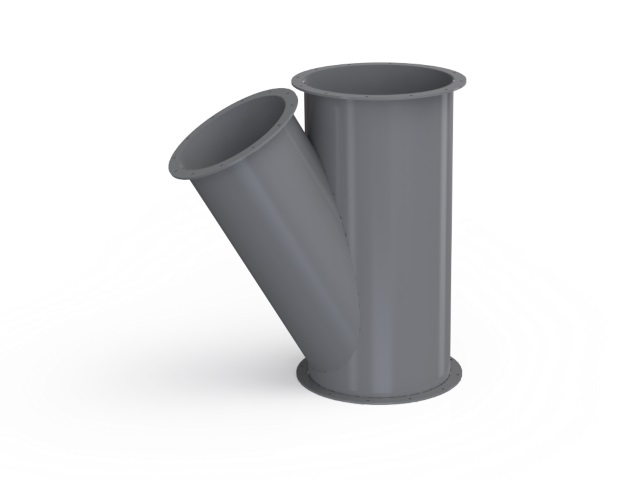

Branch
30°, straight or reduced

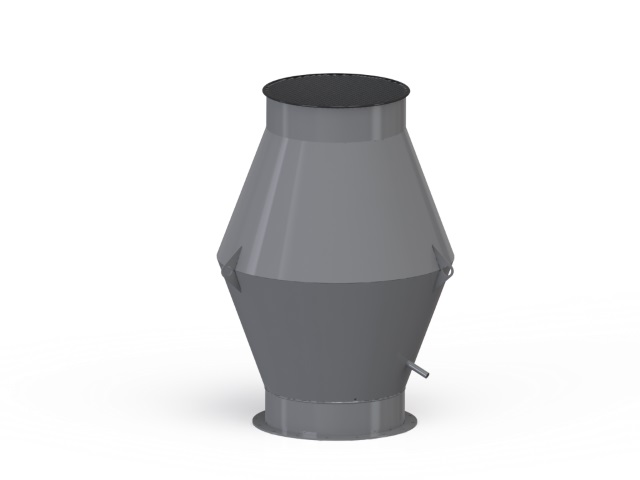

Deflector Hood
wide or slim design

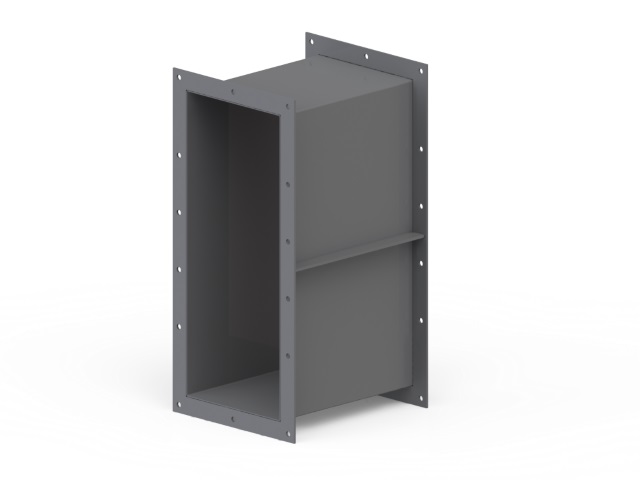

Duct
welded design

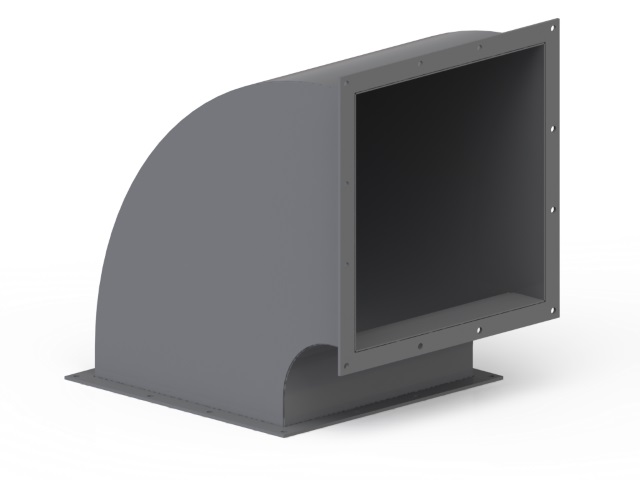

Duct Bend
welded design

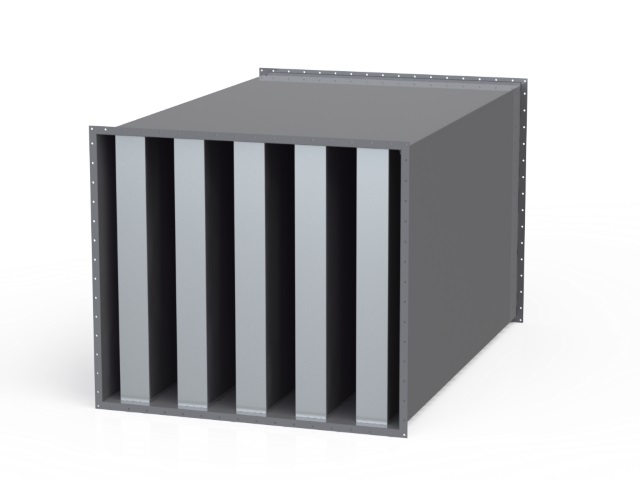

Baffle Silencer
welded design

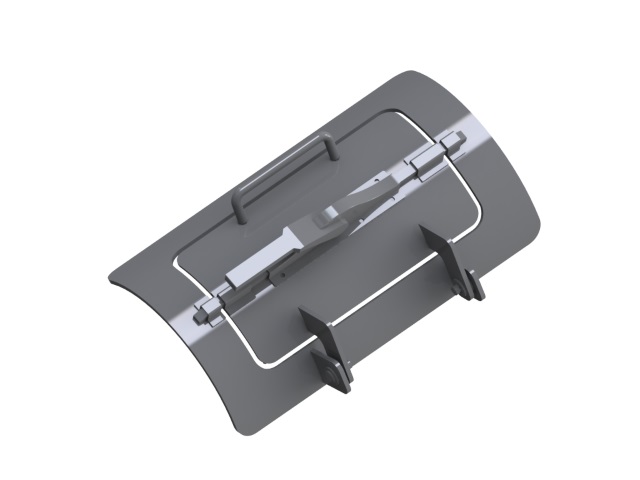

Inspection Opening
for pipes and ducts

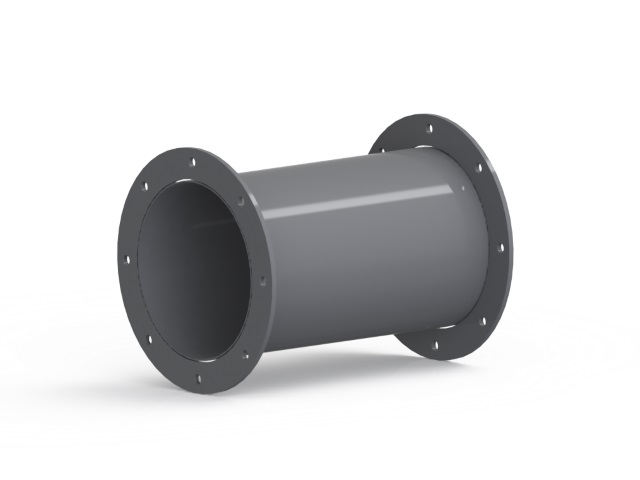

Pipe
in various lengths

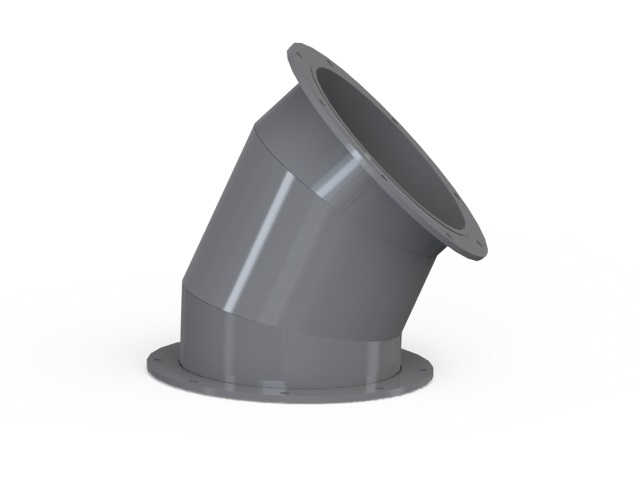

Pipe Bend
in 30, 45, 60 and 90°

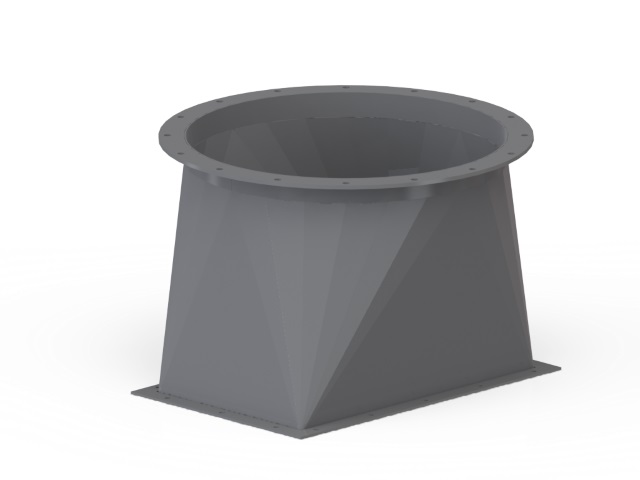

Pipe Transition
rectangular/round symmetrical and asymmetrical
Pipes and pipe fittings for process air technology according to DIN 24151 or DIN EN 1506 for pressure stages from -2500 Pa to +6300 Pa.
Welded ducts and fittings according to DIN 24190/91 or DIN EN 1505 for pressure stages from -2500 Pa to +6300 Pa.
For pipe components DIN 24151 / 24147, flat flanges according to DIN 24154 Series II (Part II), Series 5 or angle flanges according to DIN 24155 (edition 1966) can be used. Or special flanges according to your wishes.
Nominal Sizes / Diameters
We supply the following nominal sizes / diameters, lengths and sheet thicknesses according to DIN 24151:
| DN (mm) | s (mm) | Length (mm) | Length (mm) | Length (mm) |
|---|---|---|---|---|
| 100 | 1,5 | 1.000 | 2.000 | 3.000 |
| 112 | 1,5 | 1.000 | 2.000 | 3.000 |
| 125 | 1,5 | 1.000 | 2.000 | 3.000 |
| 140 | 1,5 | 1.000 | 2.000 | 3.000 |
| 150 | 1,5 | 1.000 | 2.000 | 3.000 |
| 160 | 1,5 | 1.000 | 2.000 | 3.000 |
| 180 | 1,5 | 1.000 | 2.000 | 3.000 |
| 200 | 1,5 | 1.000 | 2.000 | 3.000 |
| 224 | 1,5 | 1.000 | 2.000 | 3.000 |
| 250 | 1,5 | 1.000 | 2.000 | 3.000 |
| 280 | 2,0 | 1.000 | 2.000 | 3.000 |
| 315 | 2,0 | 1.000 | 2.000 | 3.000 |
| 355 | 2,0 | 1.000 | 2.000 | 3.000 |
| 400 | 2,0 | 1.000 | 2.000 | 3.000 |
| 450 | 2,0 | 1.000 | 2.000 | 3.000 |
| 500 | 2,0 | 1.000 | 2.000 | 3.000 |
| 560 | 3,0 | 1.000 | 2.000 | 3.000 |
| 630 | 3,0 | 1.000 | 2.000 | 3.000 |
| 710 | 3,0 | 1.000 | 2.000 | 3.000 |
| 800 | 3,0 | 1.000 | 2.000 | 3.000 |
| 900 | 3,0 | 1.000 | 2.000 | 3.000 |
| 1.000 | 3,0 | 1.000 | 2.000 | 3.000 |
| 1.120 | 3,0 | 1.000 | 2.000 | 3.000 |
| 1.250 | 3,0 | 1.000 | 2.000 | 3.000 |
| 1.400 | 3,0 | 1.000 | 2.000 | 3.000 |
| 1.600 | 3,0 | 1.000 | 2.000 | 3.000 |
| 1.800 | 3,0 | 1.000 | 2.000 | 3.000 |
| 2.000 | 3,0 | 1.000 | 2.000 | 3.000 |
Versions deviating from DIN are available on request.
Materials
- Sheet steel
- Boiler plate
- Heat-resistant steels
- Wear-resistant steels
- Rust-, acid- or heat-resistant stainless steels
Surface Treatment Options
- primed
- painted
- hot-dip galvanized
- sandblasted
- stainless steel parts pickled
The surface treatment is always to be determined on an order-by-order basis. Delivery condition otherwise: material untreated.
Pipe Connection Variants
Connection with Welded Flanges
Flat or angle flanges are permanently welded to the pipe ends - standard from the back side. On request, the flanges can also be additionally welded from the inside.
Sealing Options
For sealing, we offer a sealing cord that is glued to the flange. In addition, we offer suitably perforated flat gaskets that cover the entire flange profile.
Application Area
- For oil mist-laden air
- For hot exhaust gases
- For vertical or longer-running pipelines where tightness and stability are required.
Dimensions
- Diameter 80 to 2000 mm
- Wall thicknesses 1.5 to 5.0 mm
Connection with Loose Flanges Behind Bead
The pipe ends are beaded about 10 mm wide. The flanges remain rotatable so that the components can be aligned more easily during assembly.
Sealing Options
For sealing, we offer a sealing cord that is glued to the bead.
Application Area
- For air lines or dry conveying media
Dimensions
- Diameter 80 to 2000 mm
- Wall thicknesses 1.5 to 5.0 mm
Bitte beachten Sie
The double-sided beading shortens the nominal length of the pipes by 20 mm. Example: A pipe with a nominal length of 3000 mm then has an installation length L of 2980 mm. When ordering fixed lengths, the exact installation dimension must be specified.
Connection with Clamping Rings
The pipe ends are beaded 6 mm wide. The connection is made by means of a clamping ring pulled over the beads of two pipe ends.
Sealing Options
For sealing, we offer a bead sealing ring that is pulled over a bead. The clamping ring is then tightened.
Application Area
- For quick assembly of pipelines with small diameters. To avoid the risk of sagging, adequate support of the pipe components must be ensured.
Dimensions
- Diameter 80 to 400 mm
- Wall thickness 1.5 to 2.0 mm
Bitte beachten Sie
The double-sided beading shortens the nominal length of the pipes by 16 mm. Example: A pipe with a nominal length of 3000 mm then has an installation length L of 2984 mm. When ordering fixed lengths, the exact installation dimension must be specified.
Weld Connection
The pipe ends remain smooth and are butt-welded on site.
Application Area
- Primarily for parts that need to be adapted on site.
Combination of Different Connection Types
We manufacture individual components according to your wishes, e.g., one pipe end with flange, the other pipe end smooth, etc.
Gallery

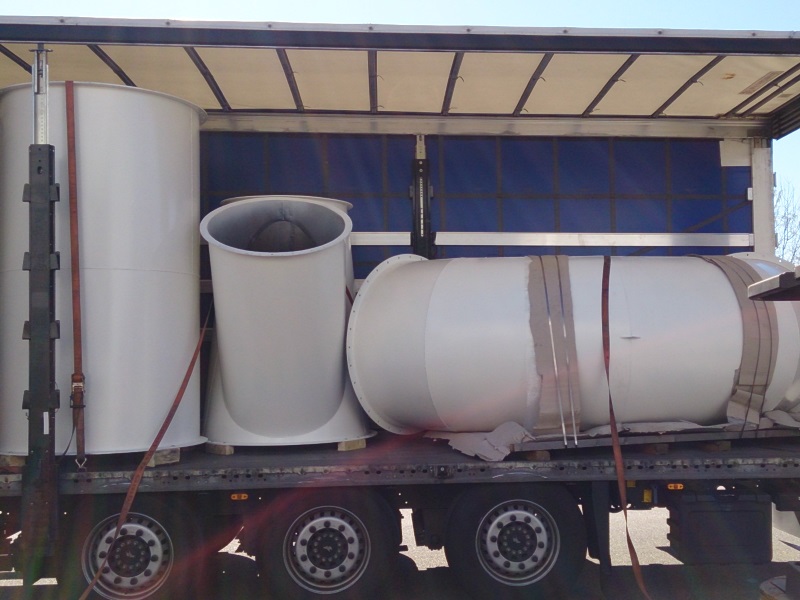

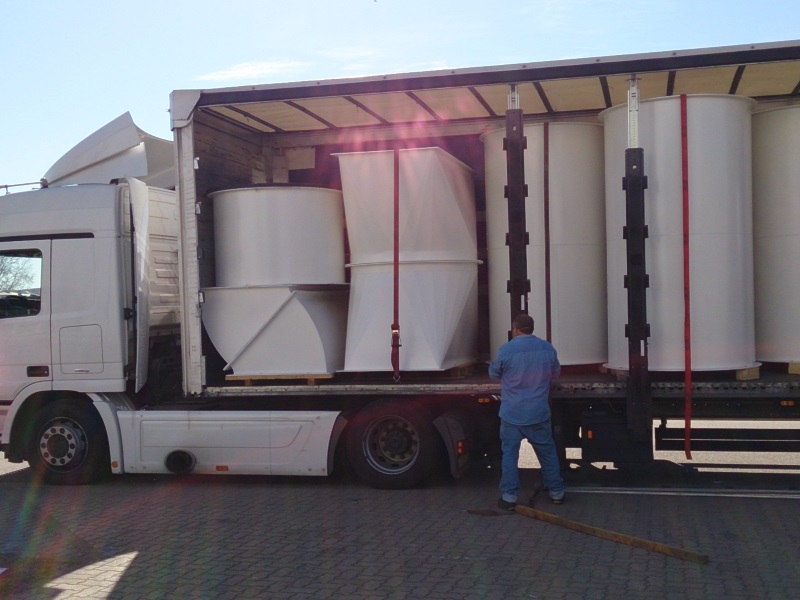

Below is a small selection of already manufactured pipes, ducts and fittings. Click on the photos for an enlarged view.

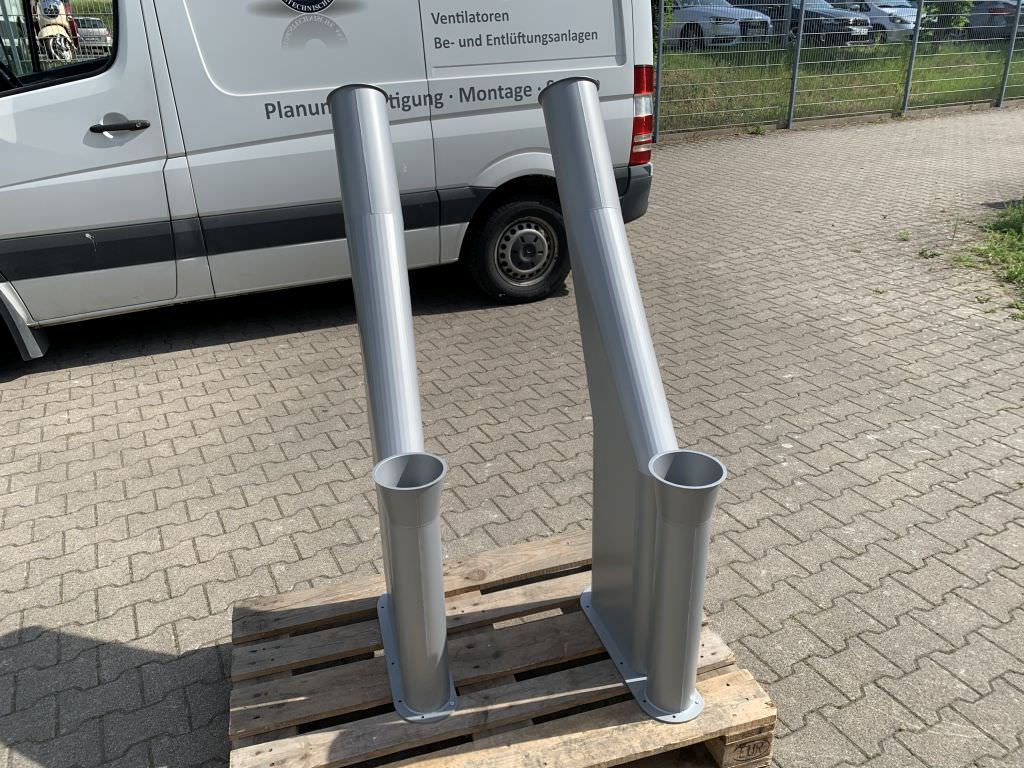

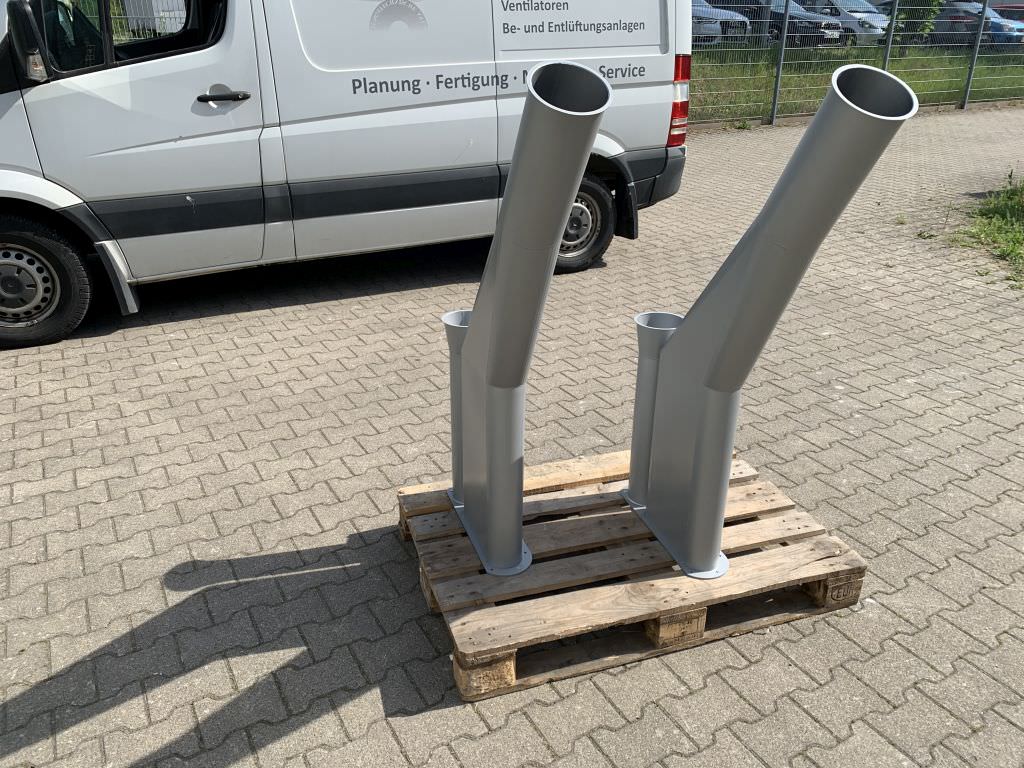

Rohr-Sonderteil
nach Kundenzeichnung
Rohr-Sonderteil
nach Kundenzeichnung

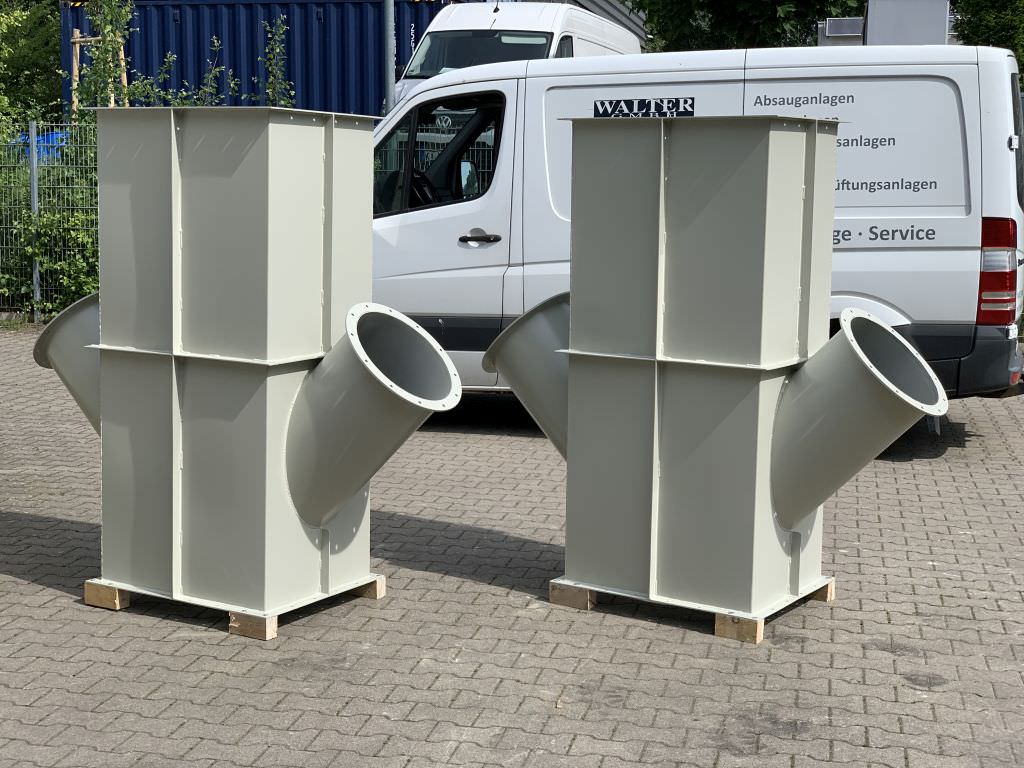

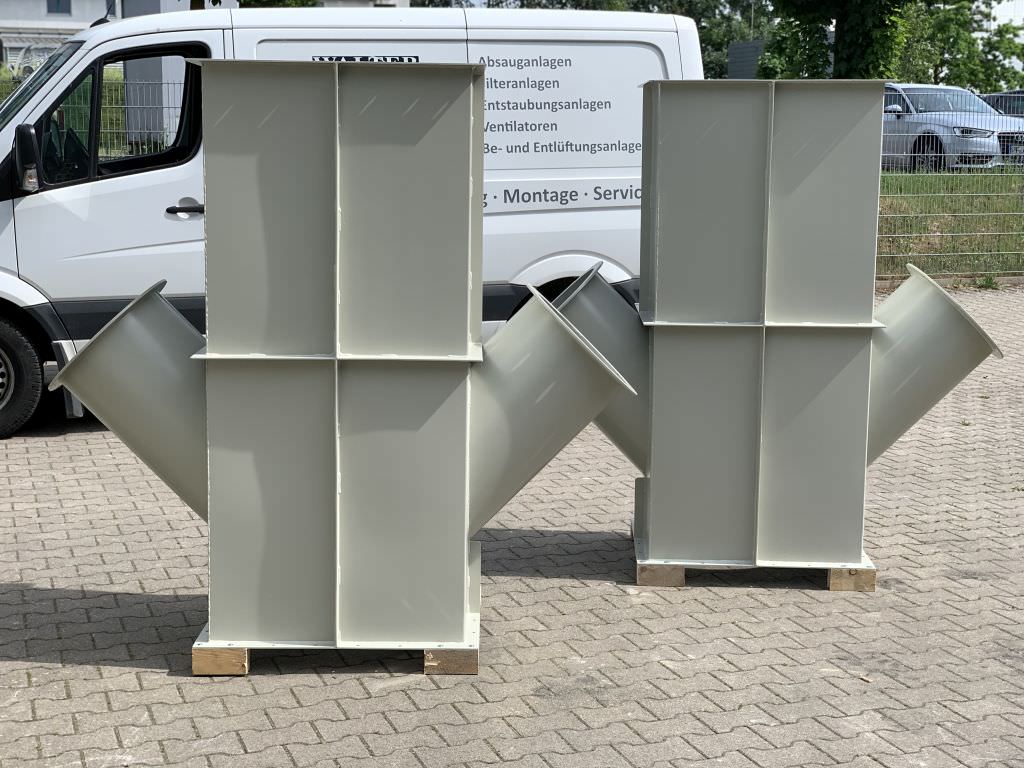

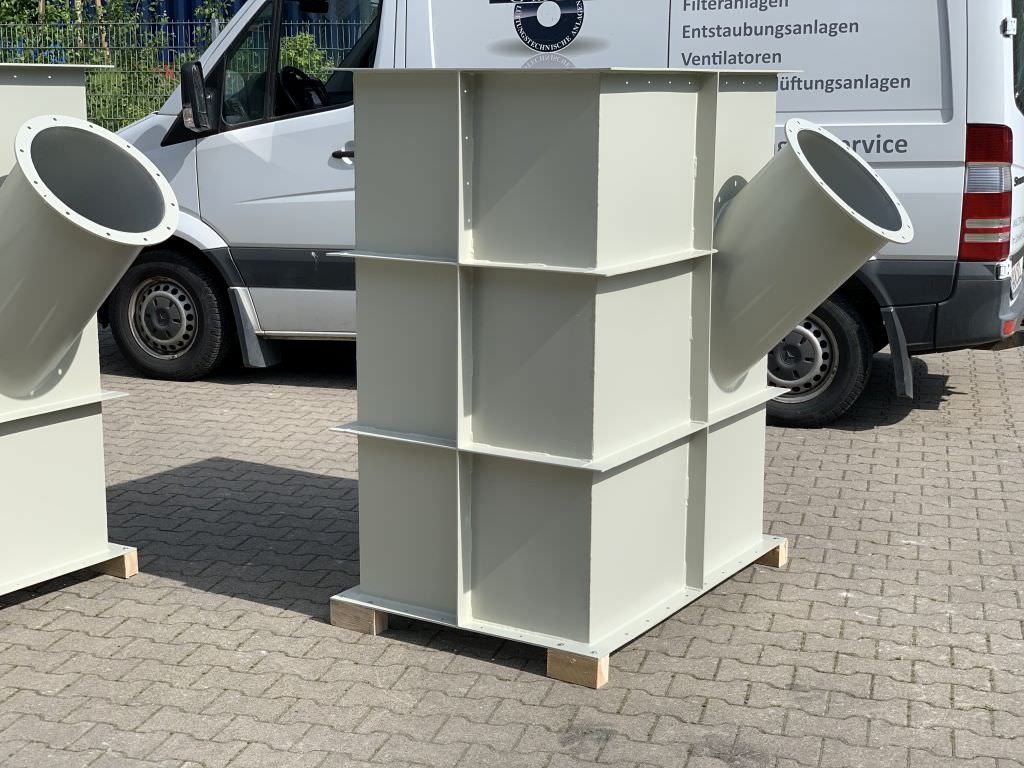

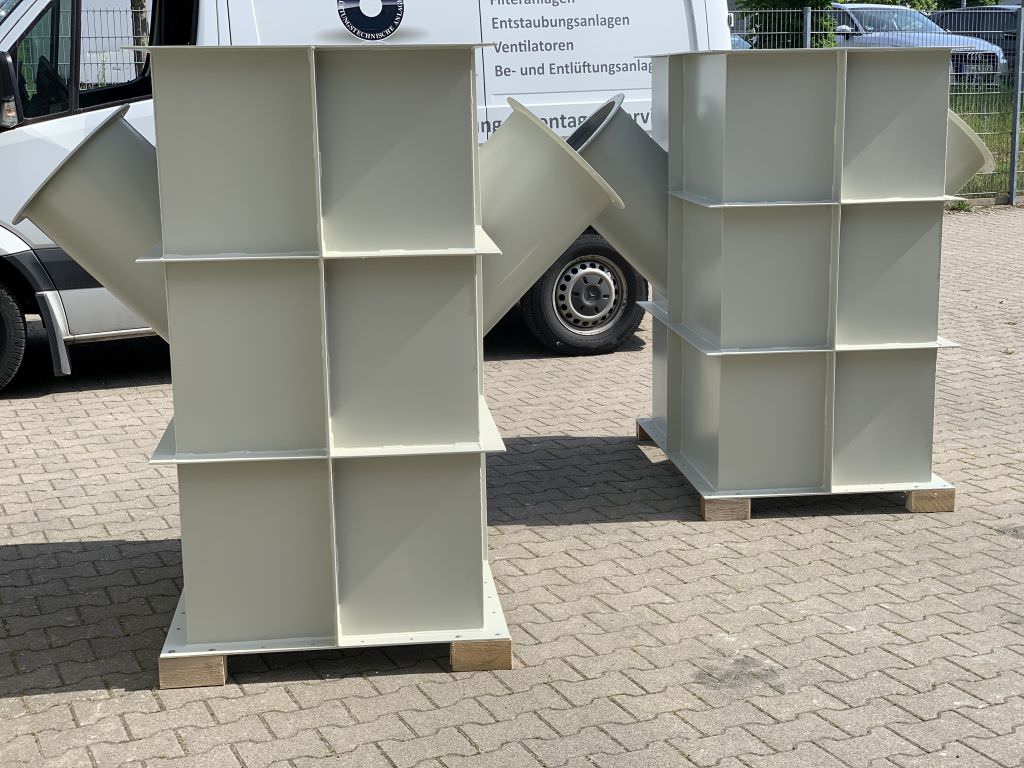

Kanal
mit Rohrabgängen 45°
Kanal
mit Rohrabgängen 45°

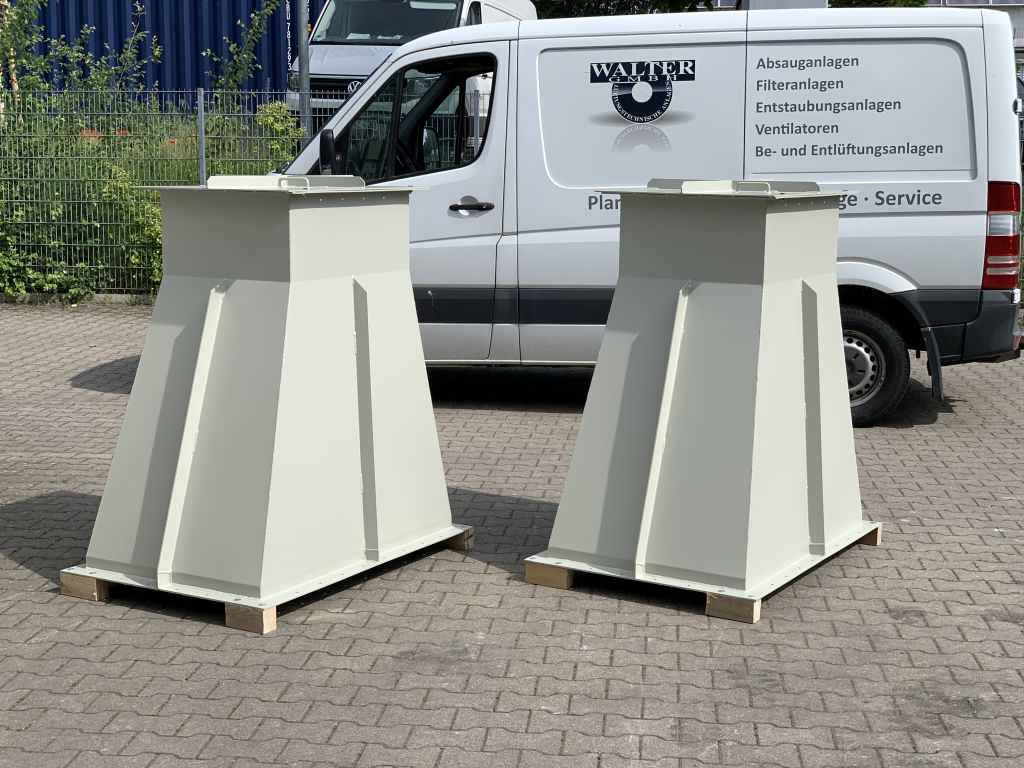

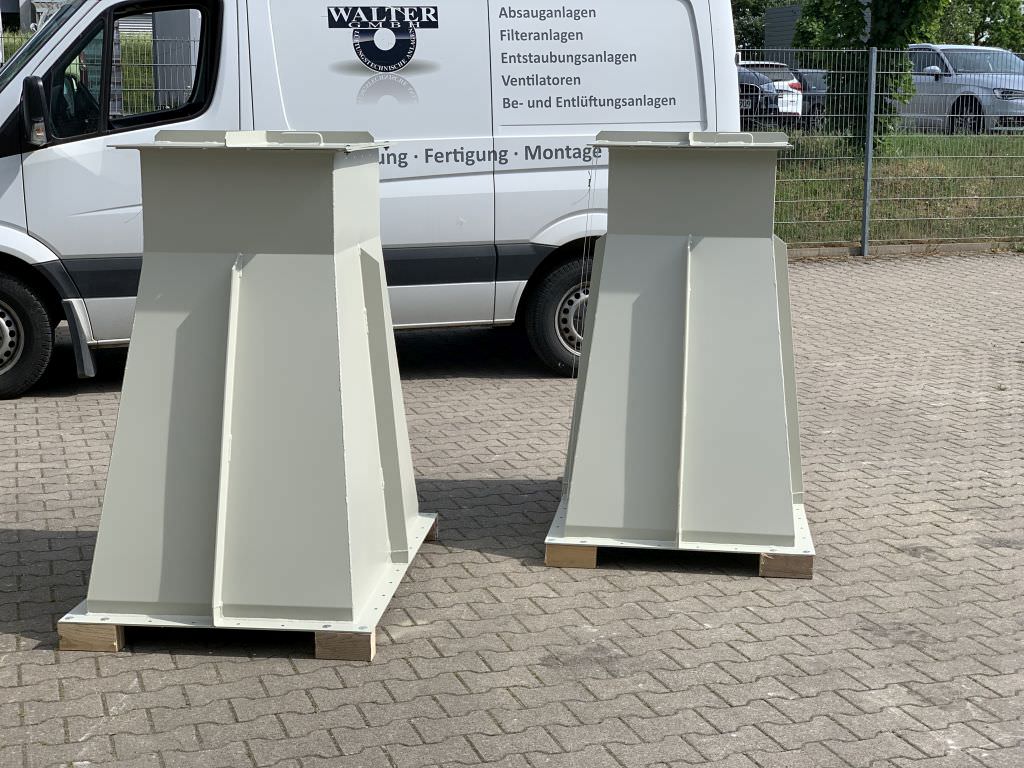

Kanalübergang
mit Blinddeckel
Kanalübergang
mit Blinddeckel
Kanal
mit Rohrabgängen 45°
Kanal
mit Rohrabgängen 45°

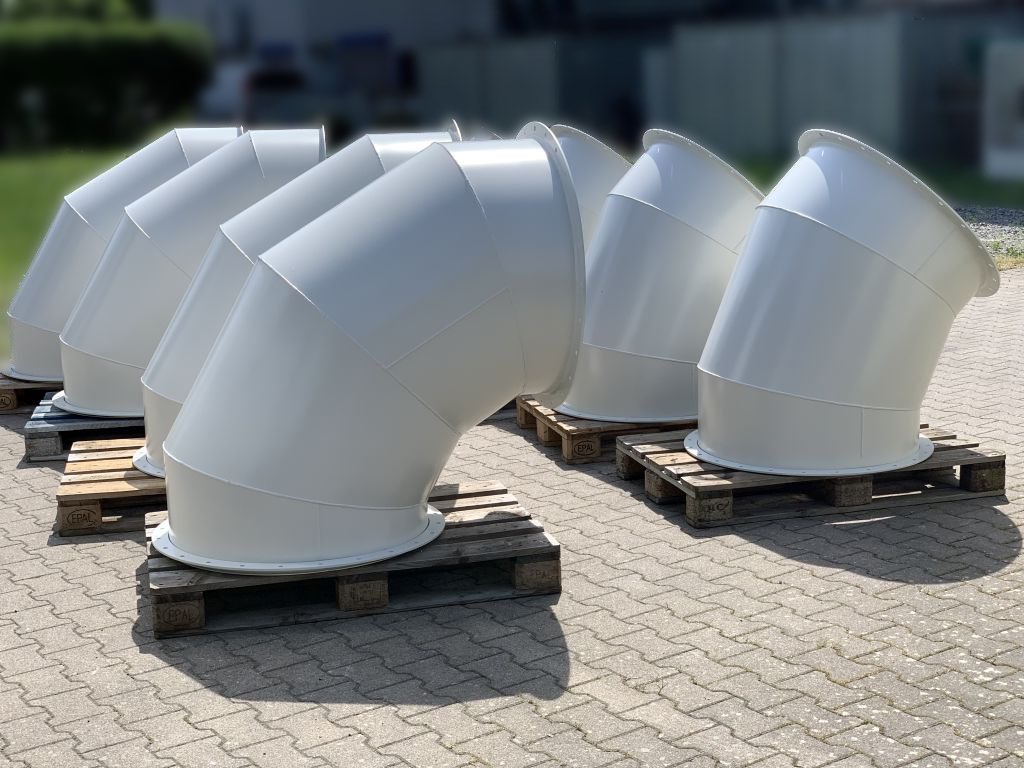

Rohrbögen
DN 800 90° 1xD / 45° 1,5xD

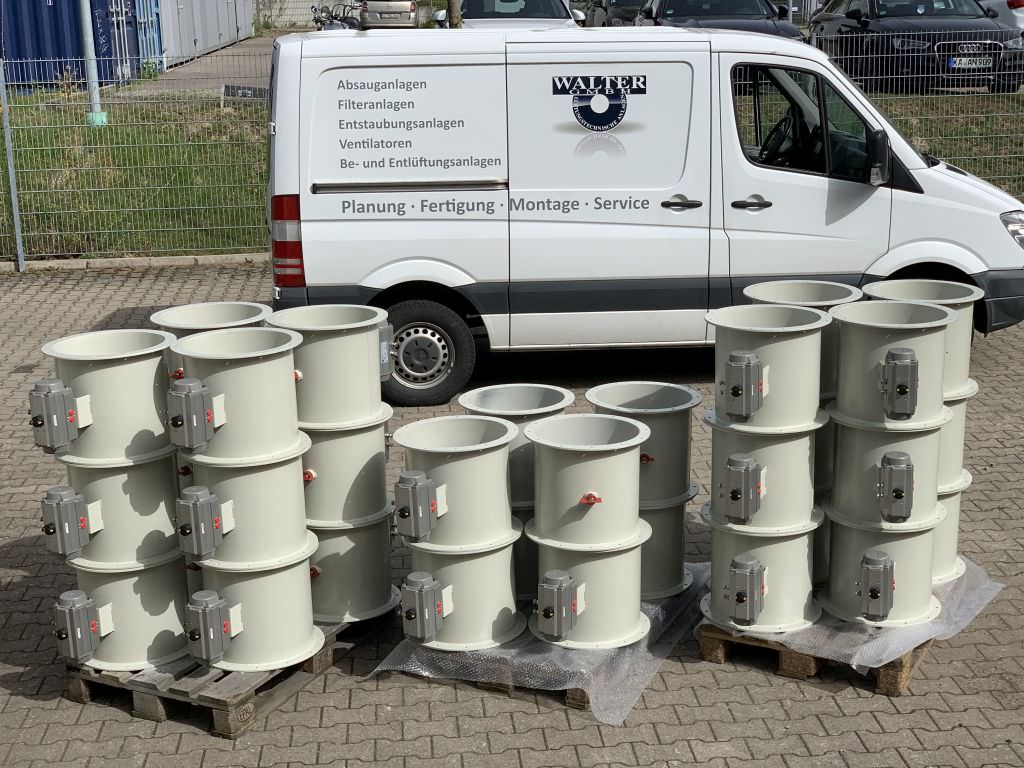

Absperrklappen DN 400
pneumatisch

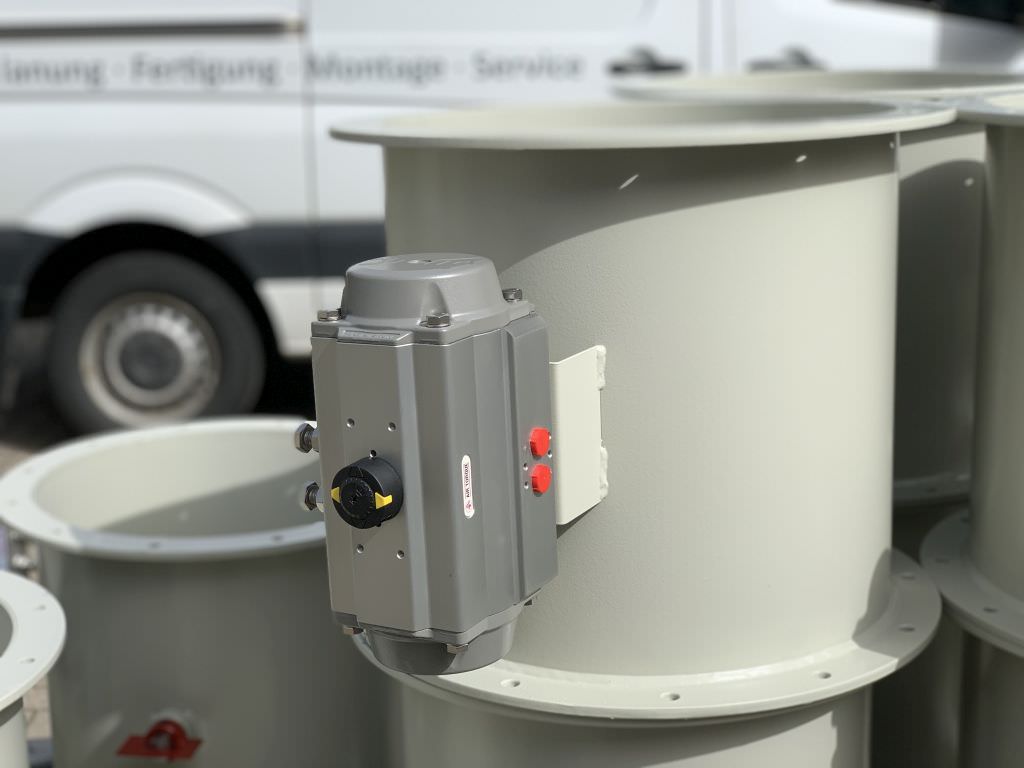

Absperrklappe DN 400
Pneumatischer Antrieb

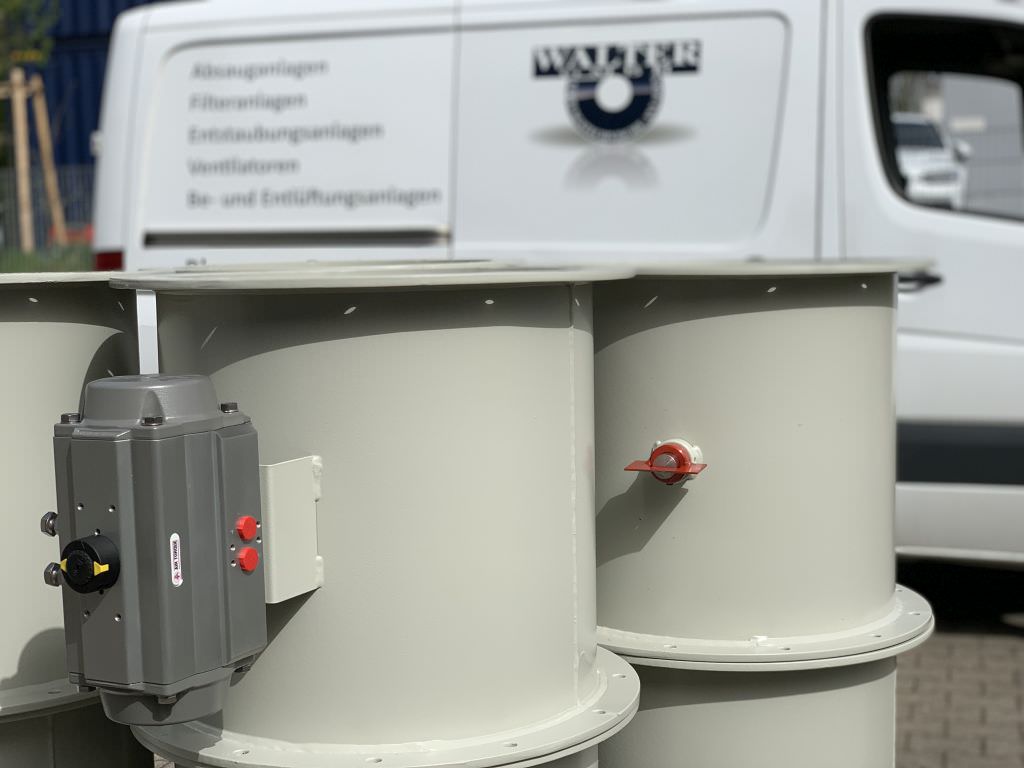

Absperrklappe DN 400
Stellungsanzeige

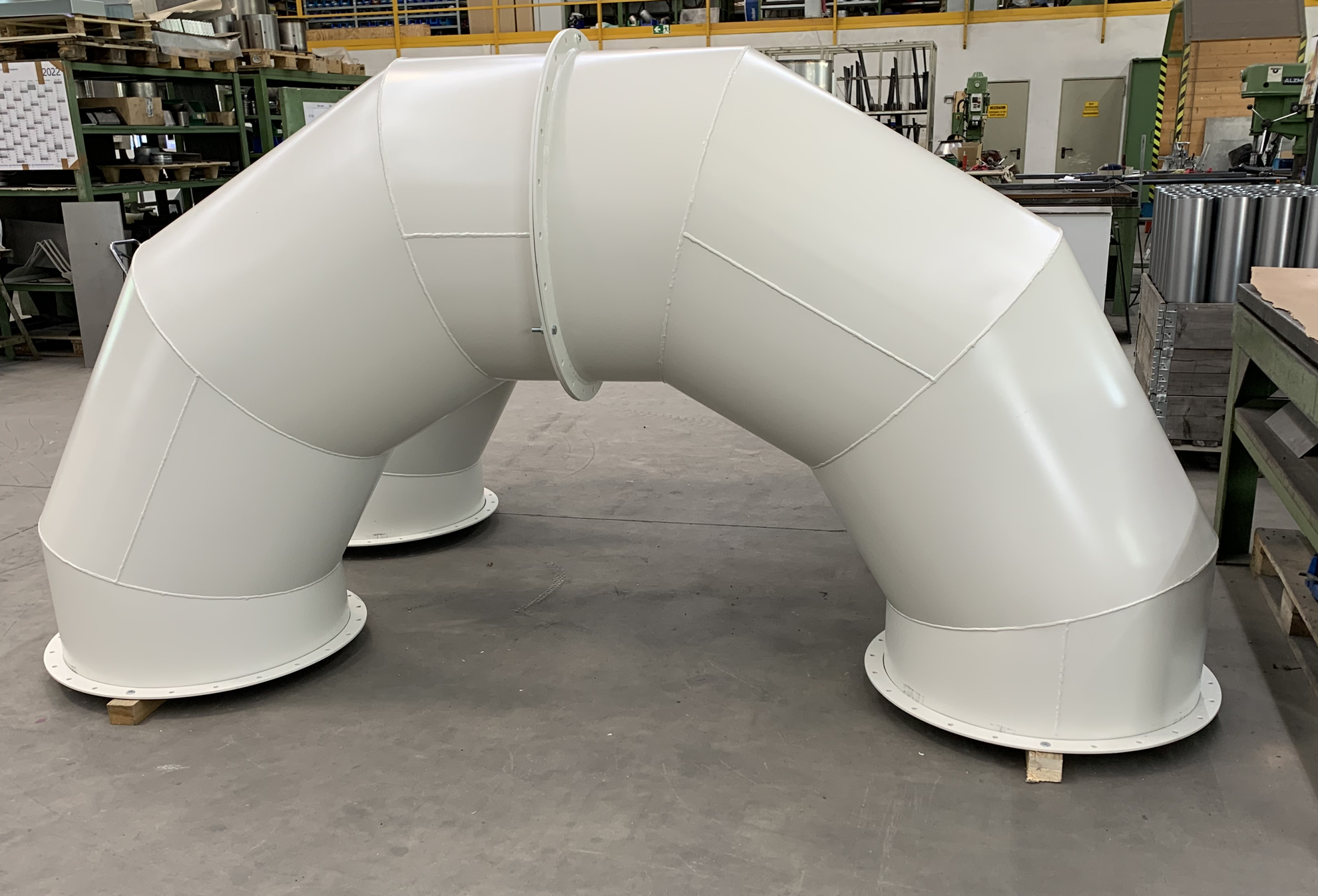

Rohrbögen
DN 800 90° 1,5xD

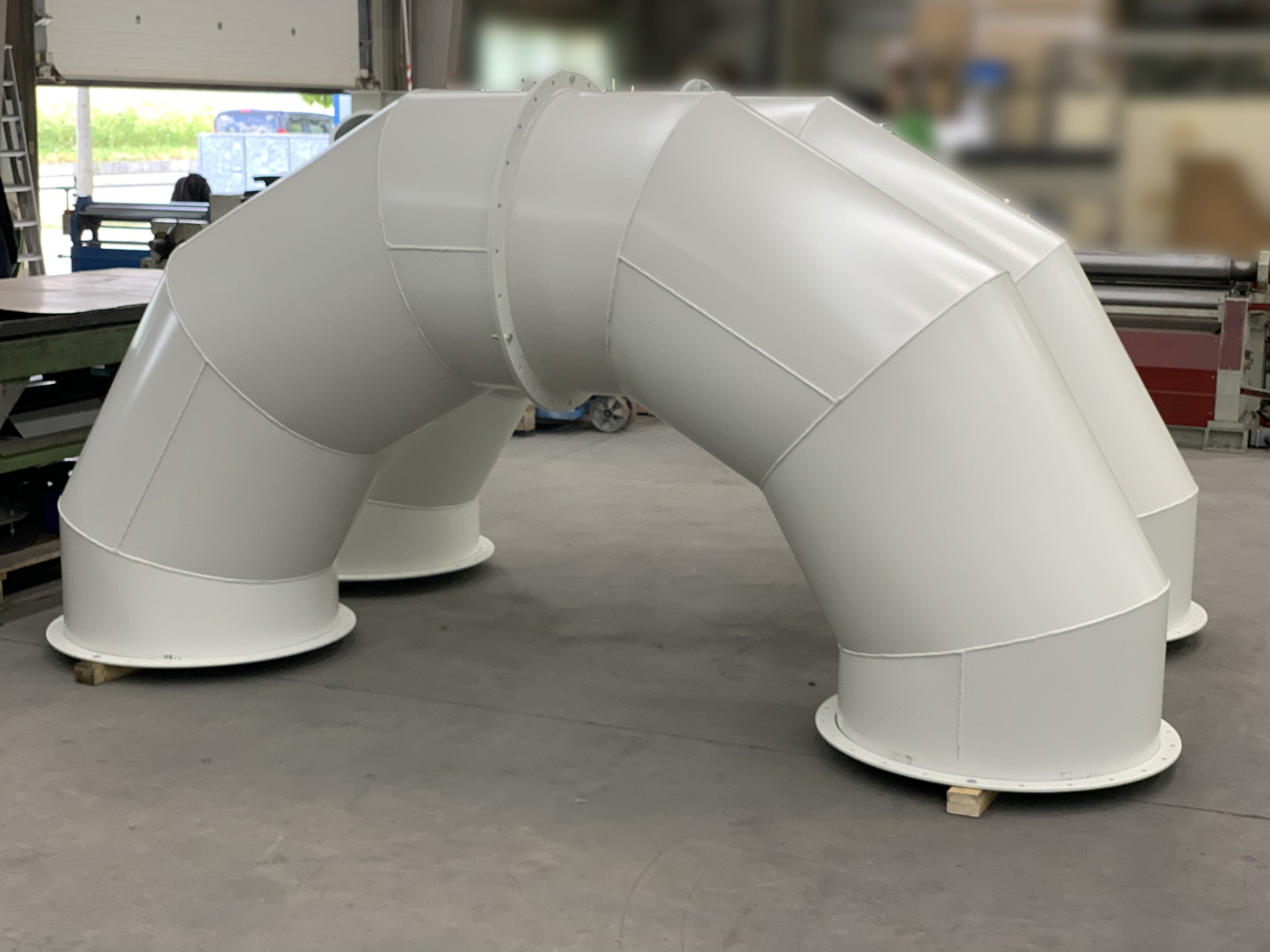

Rohrbögen
DN 800 90° 1,5xD

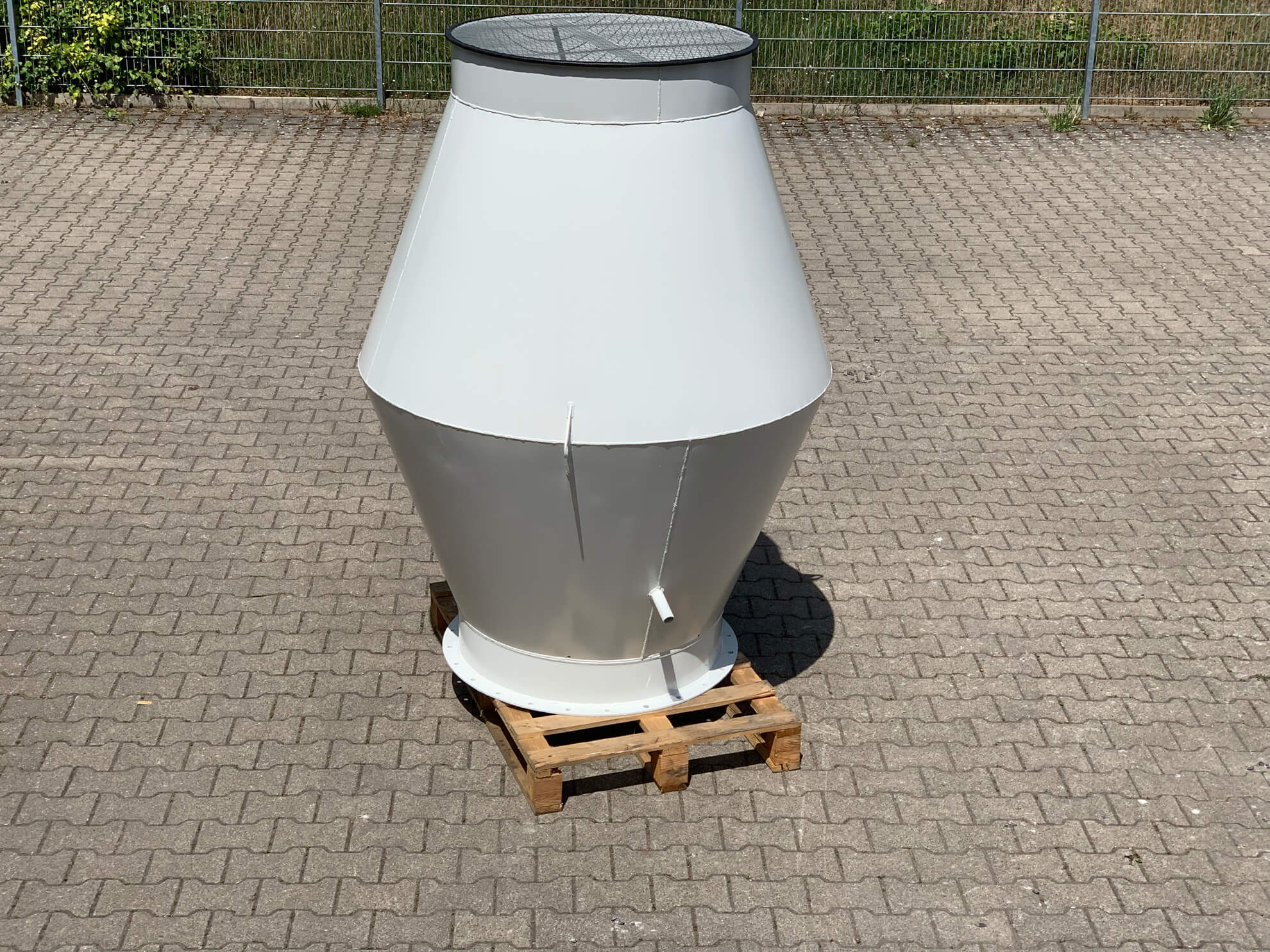

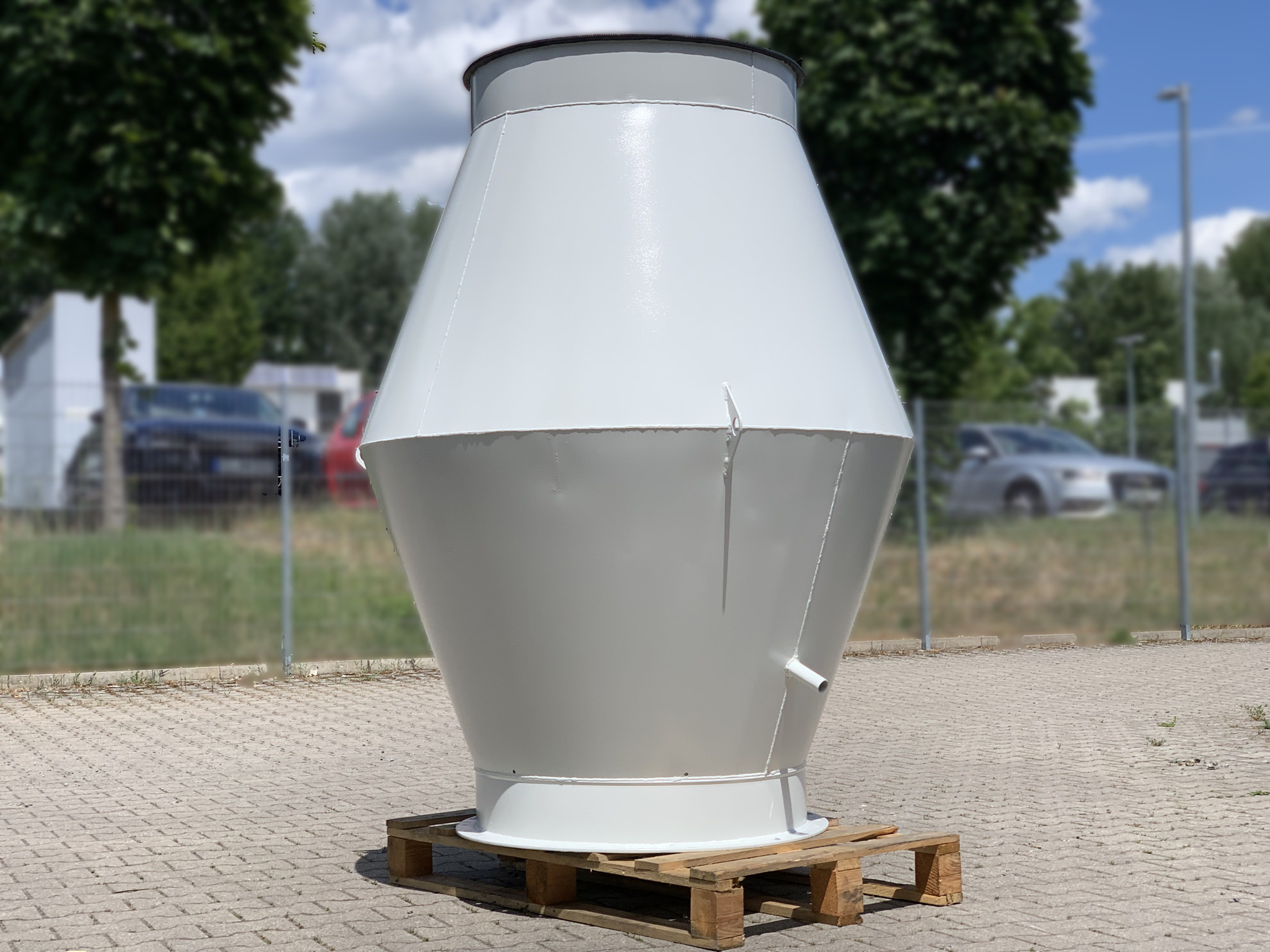

Deflektorhaube DN 800
Geschweißte Ausführung
Deflektorhaube DN 800
Geschweißte Ausführung

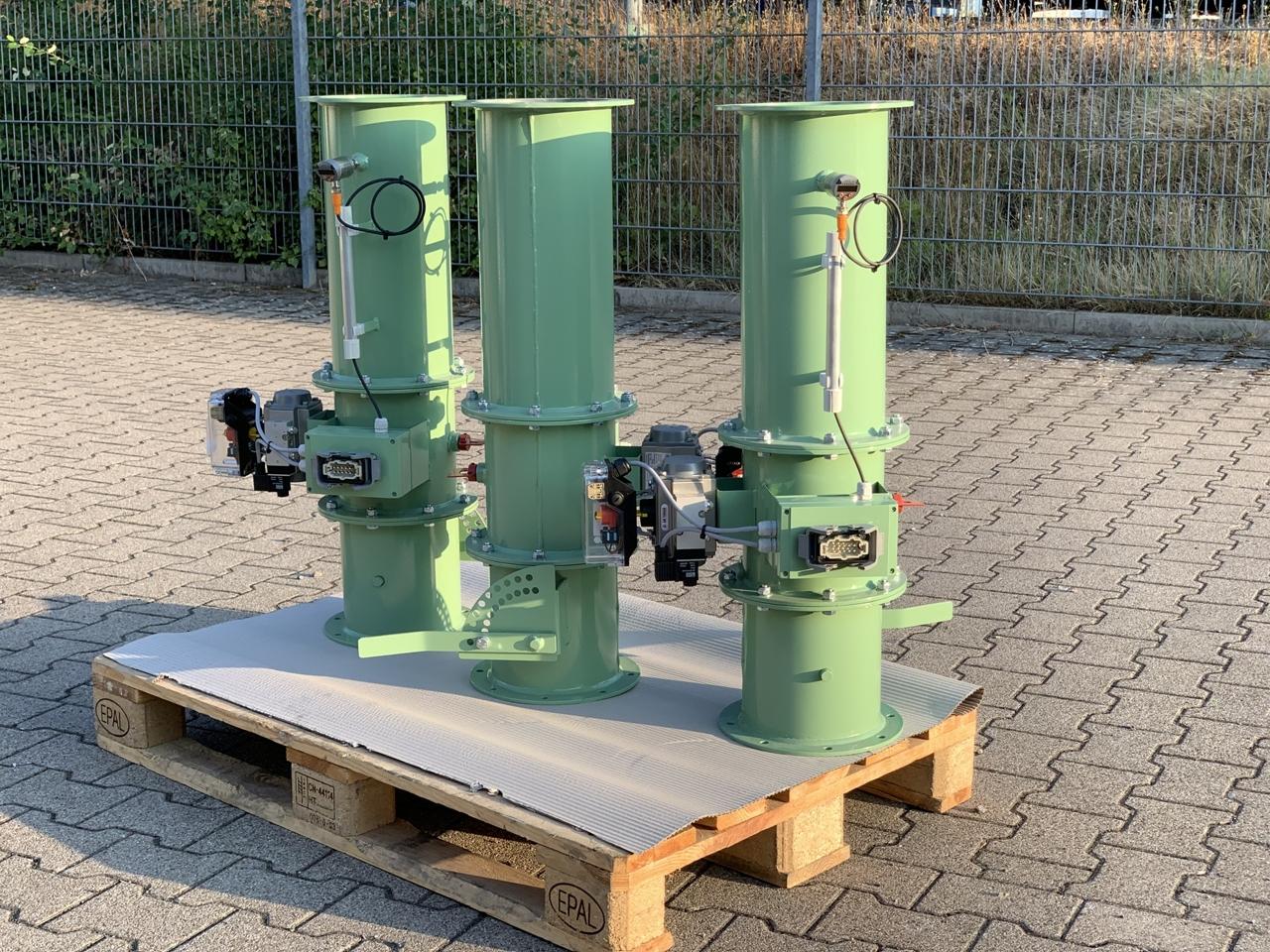

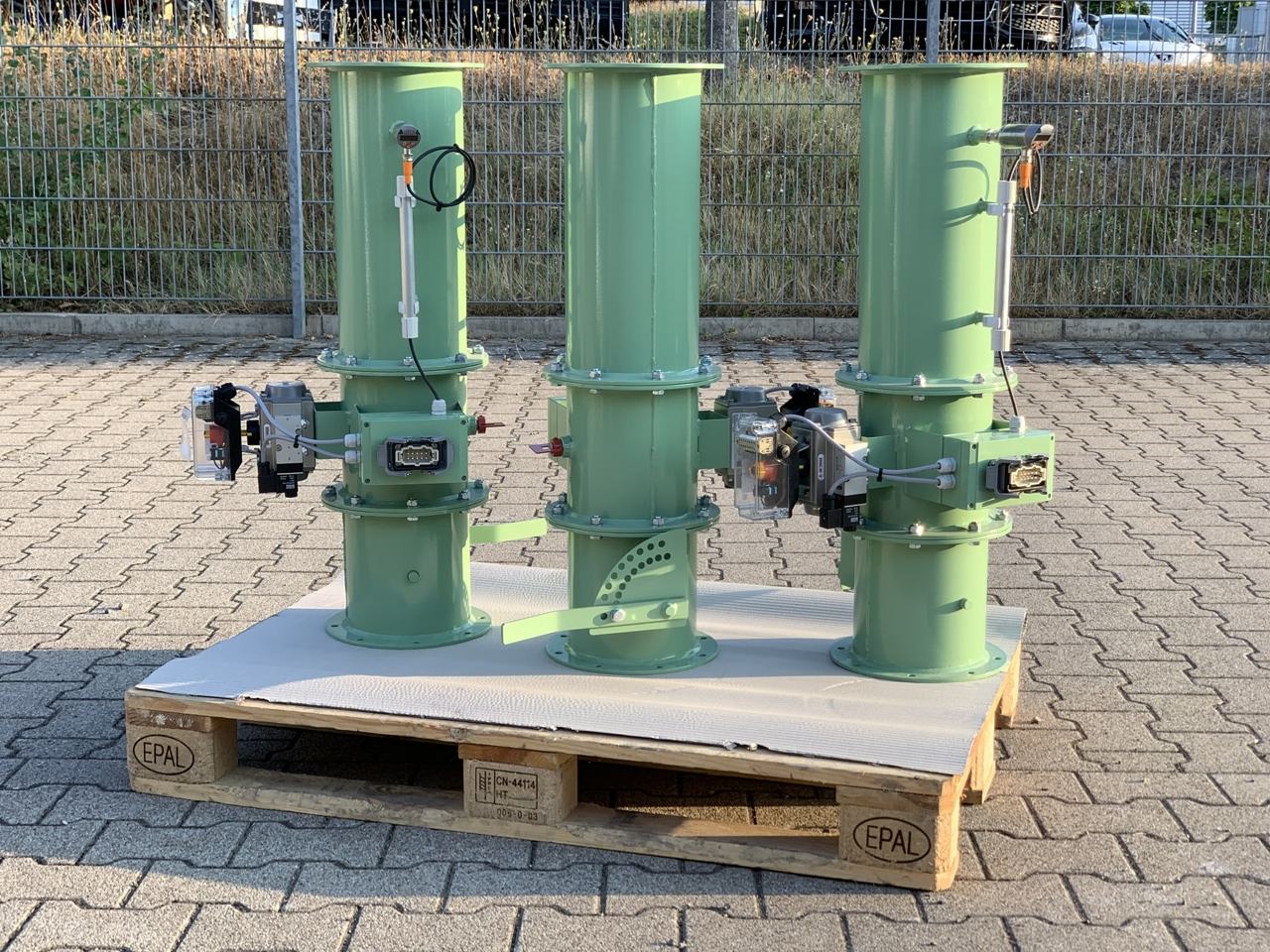

Abluftklappe DN 200
mit Strömungssensor
Abluftklappe DN 200
mit Strömungssensor

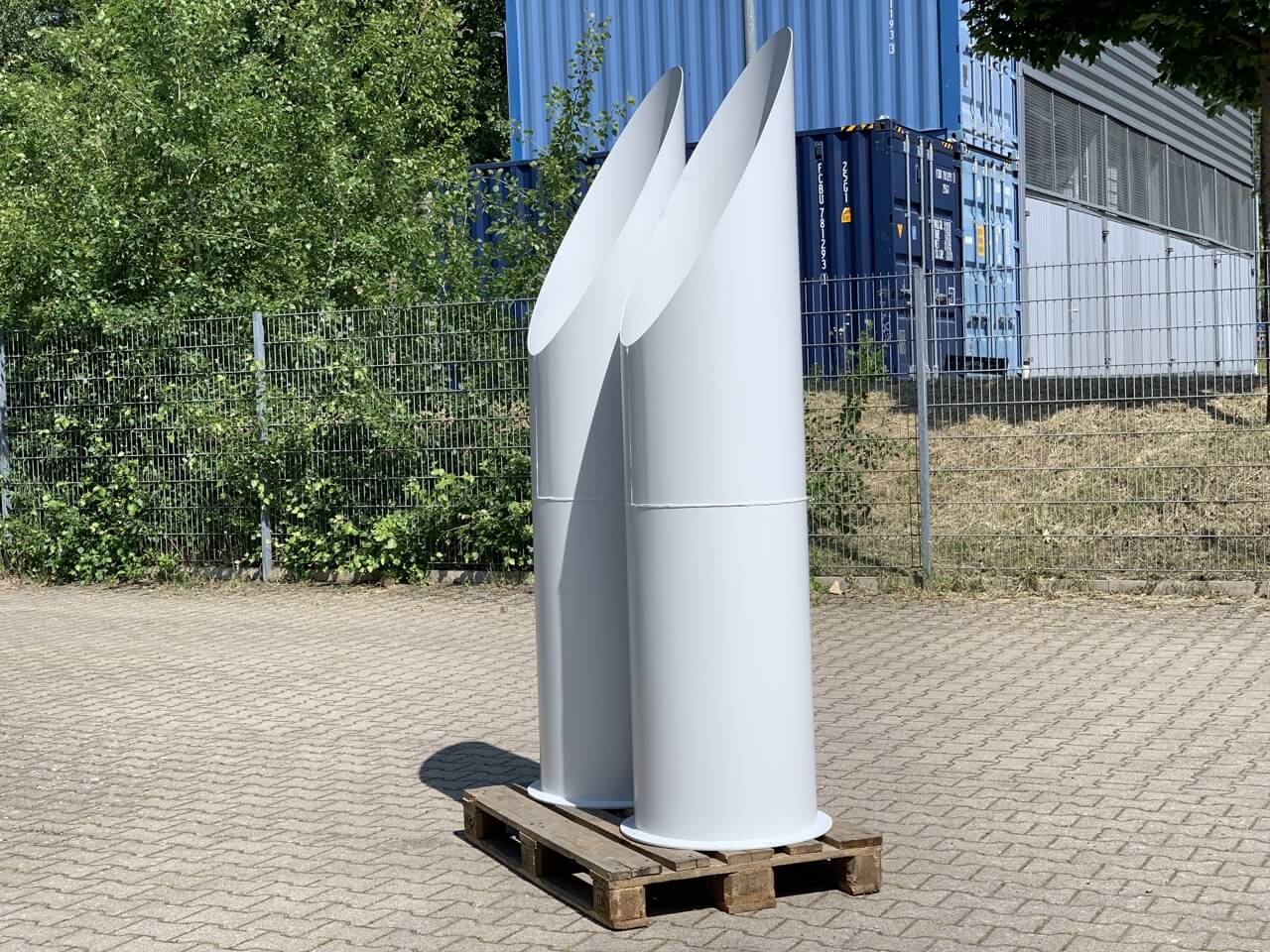

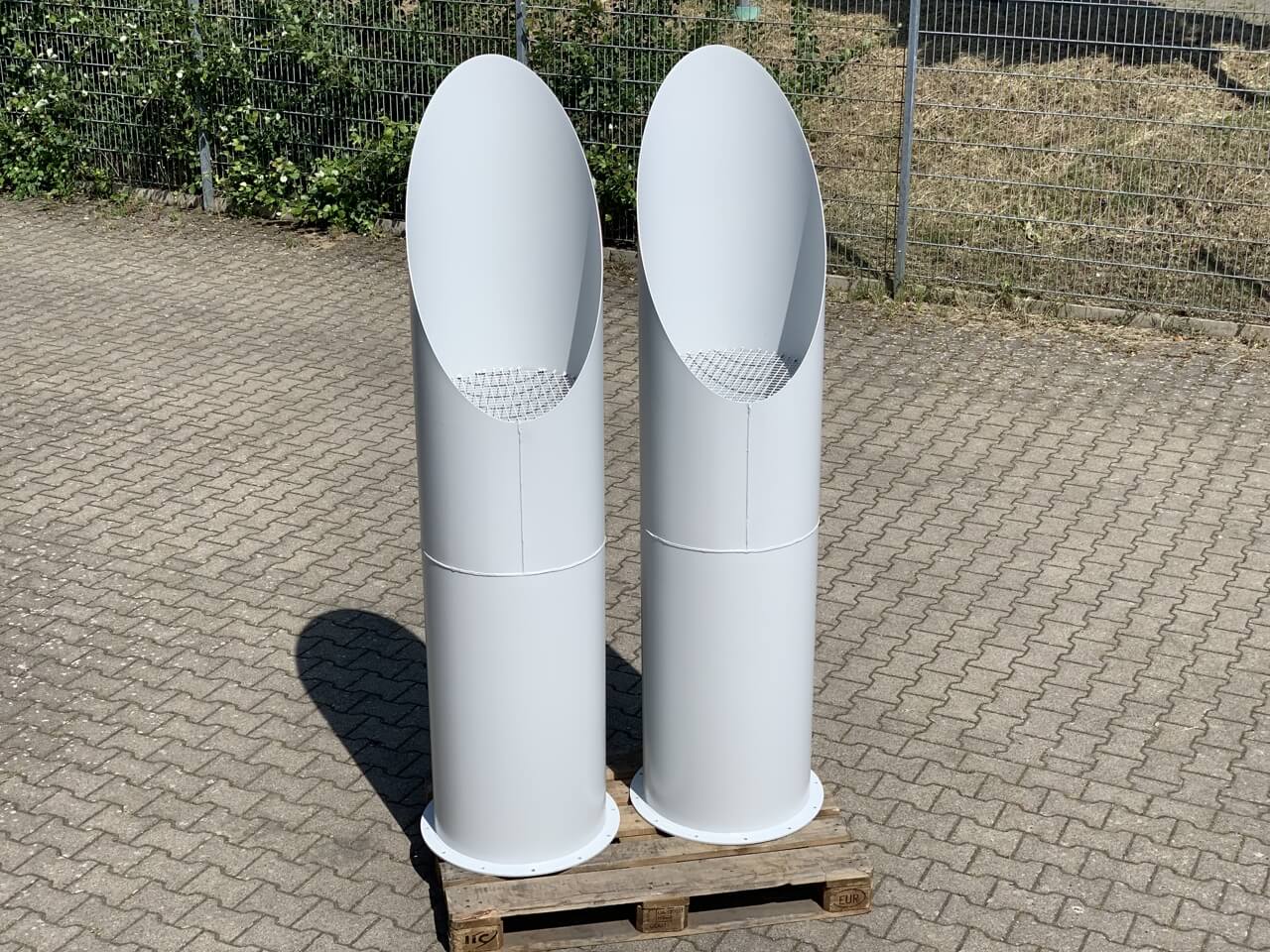

Ausblasstutzen DN 500
mit 45° Schräge

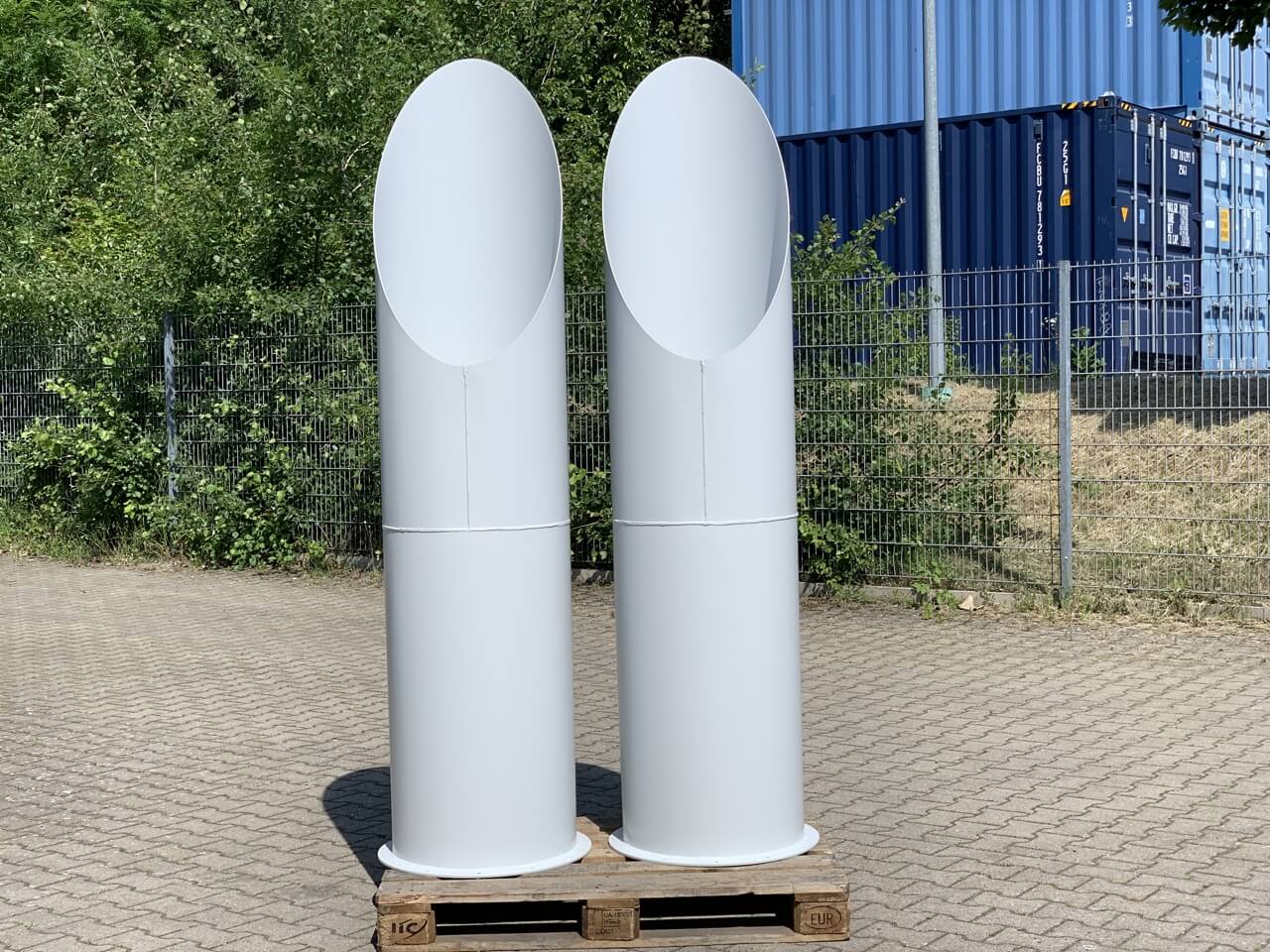

Ausblasstutzen DN 500
mit 45° Schräge
Ausblasstutzen DN 500
mit 45° Schräge

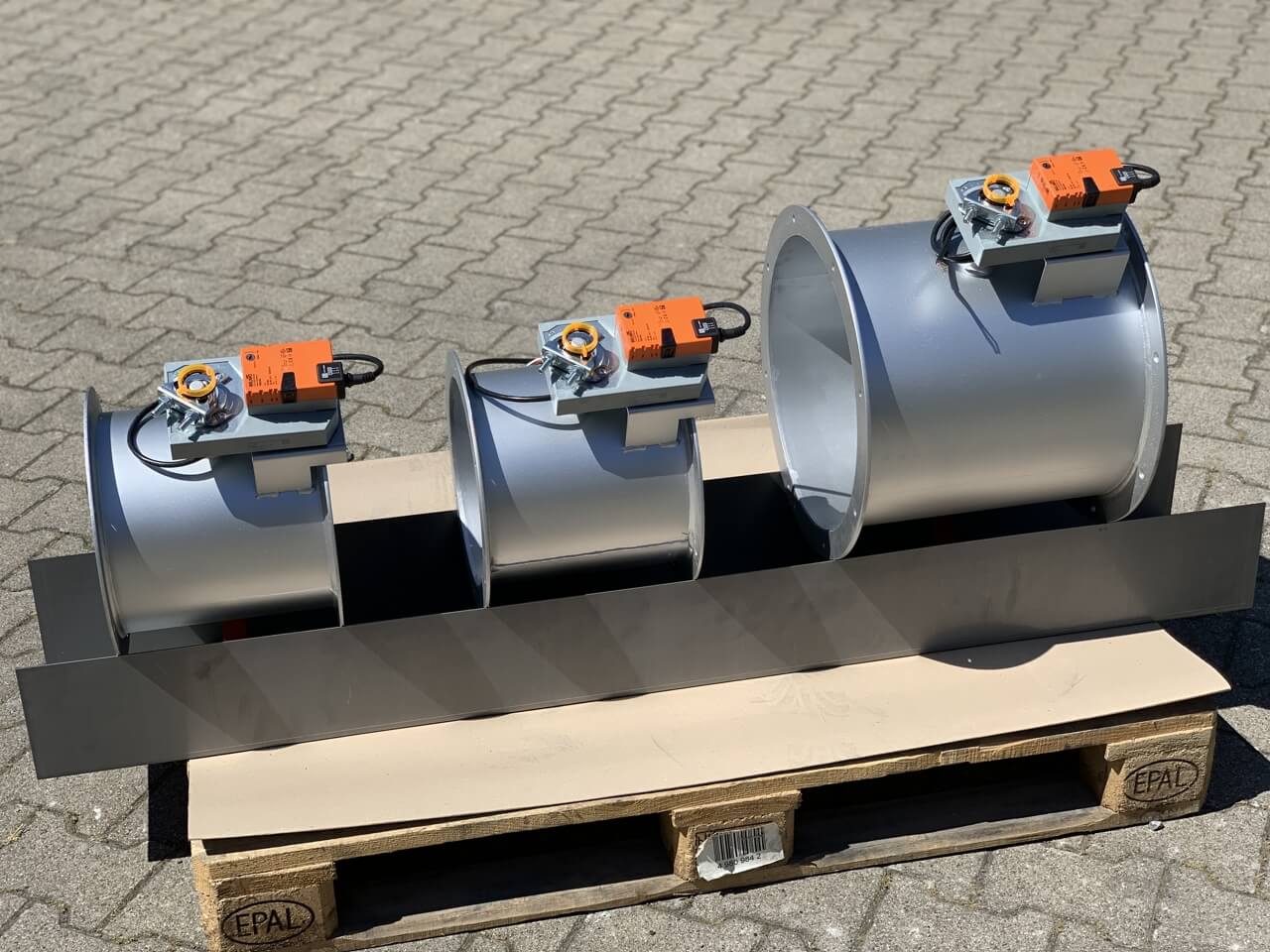

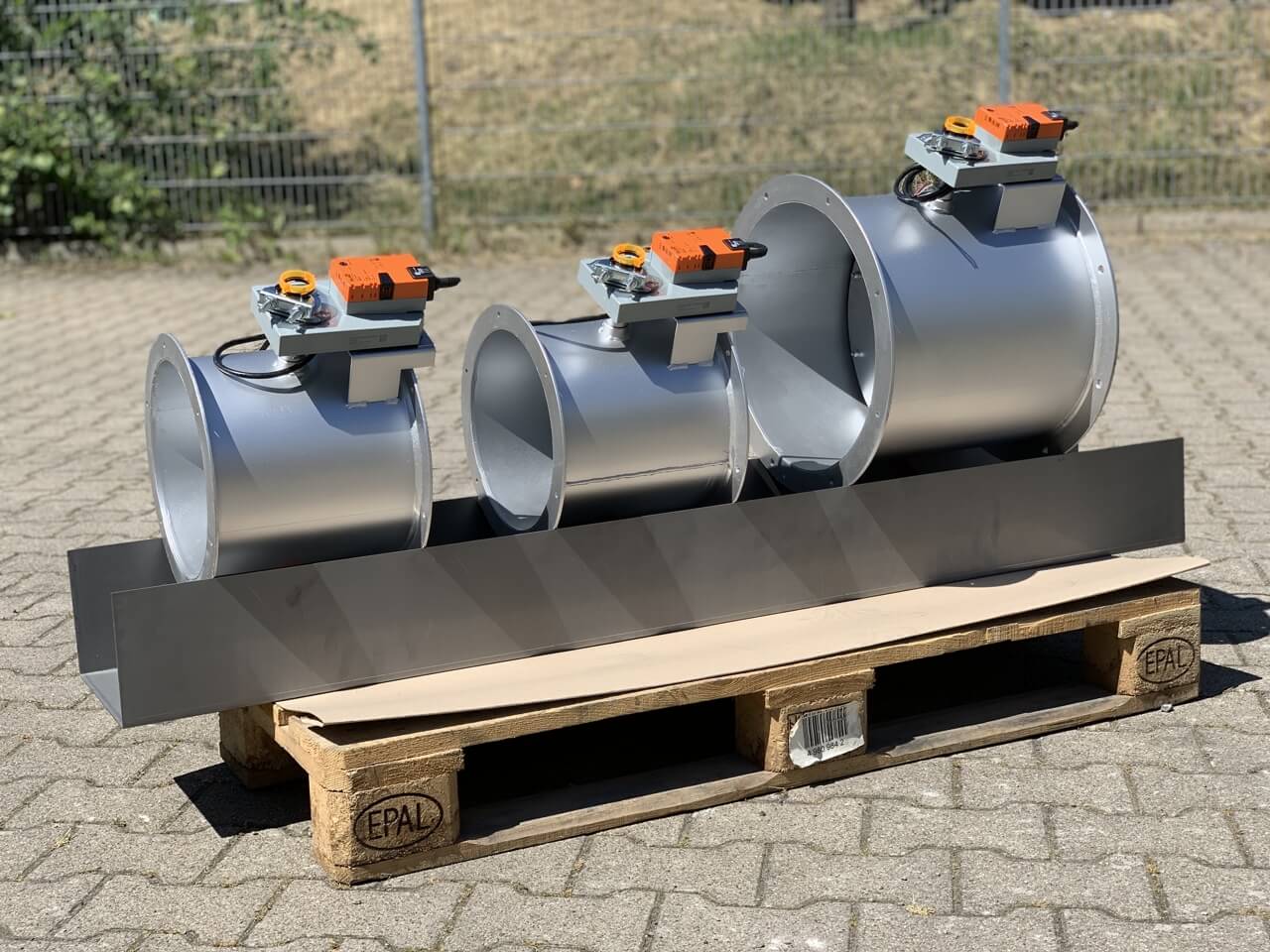

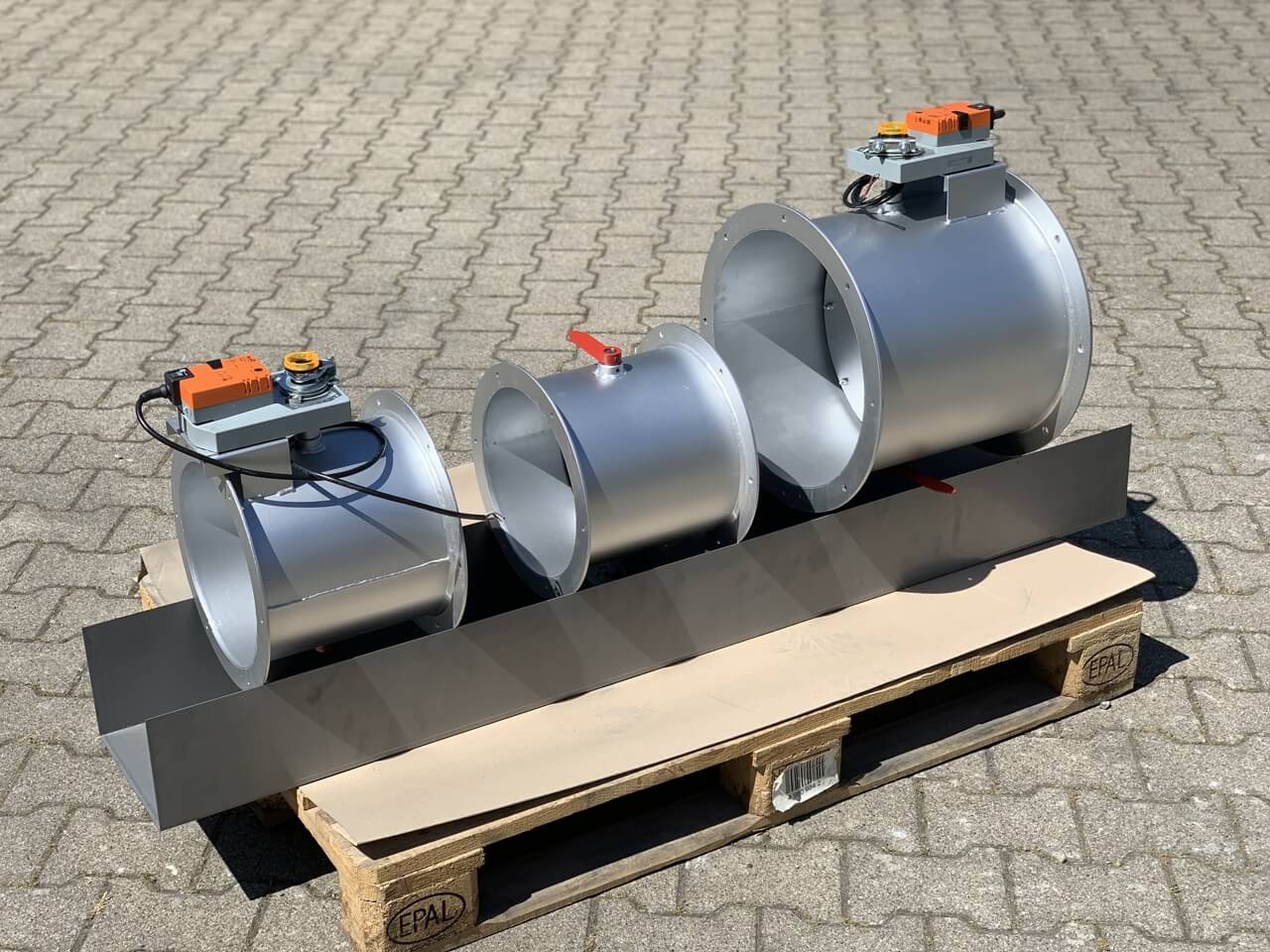

Absperrklappen mit
elektrischem Stellantrieb
Absperrklappen mit
elektrischem Stellantrieb
Absperrklappen mit
elektrischem Stellantrieb
